Description
The 'Green' line of tooling is designed specifically for cutting wrought aluminum alloys (Non-Ferrous)
The 'Engraver' line is for engraving, and is also suitable for chamfering and deburring.

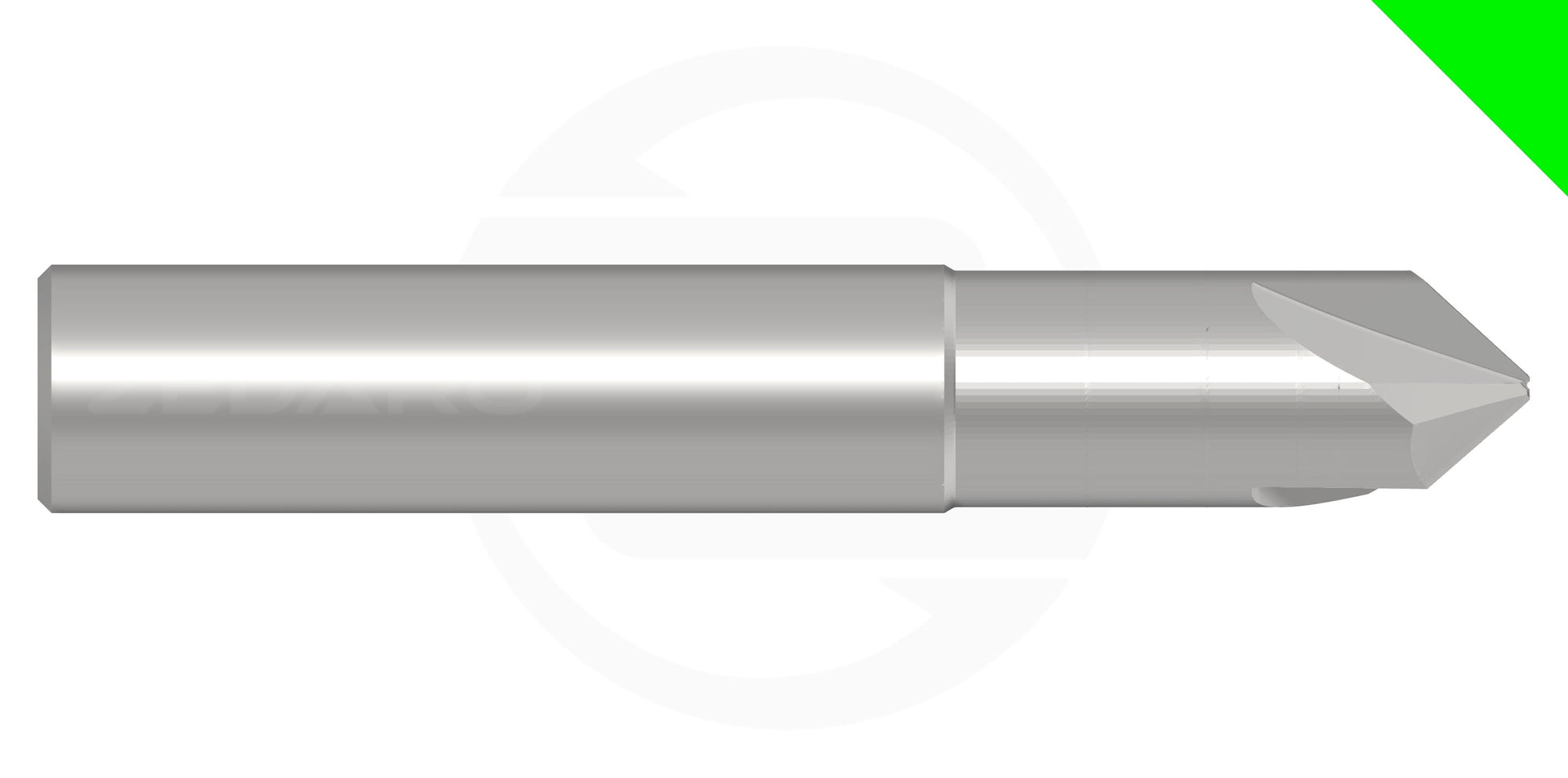

'C' form tools are for chamfering and deburring, available in a large array of tip angles.
| Tool Properties | ||
|---|---|---|

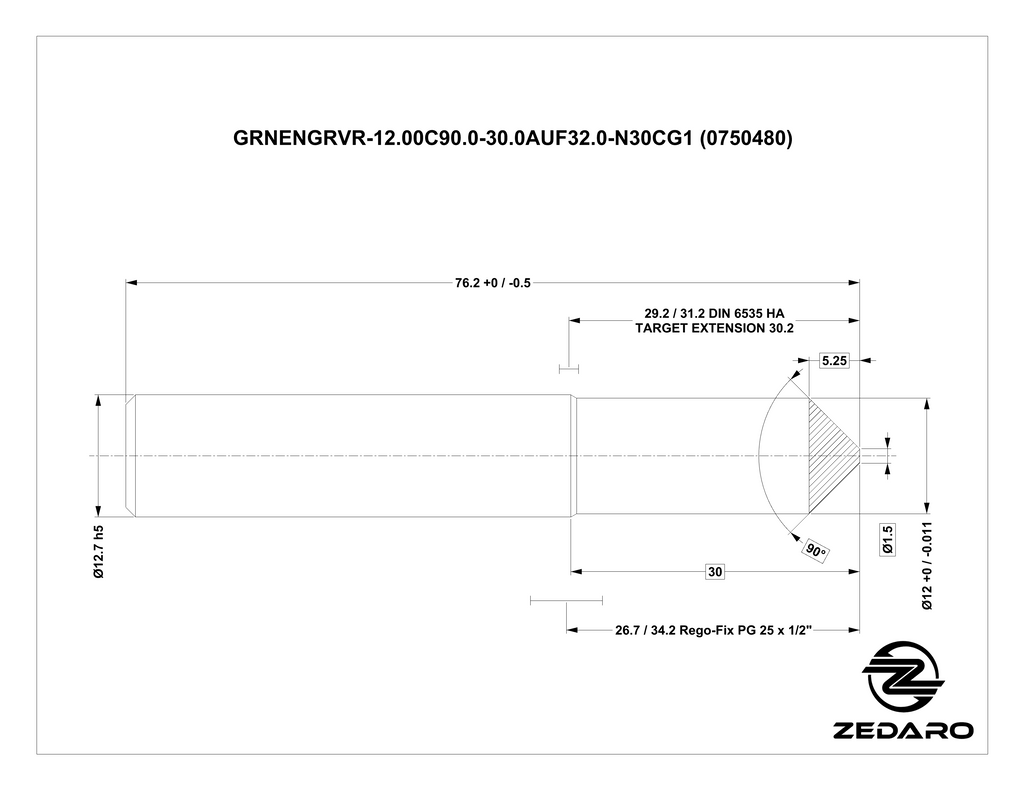

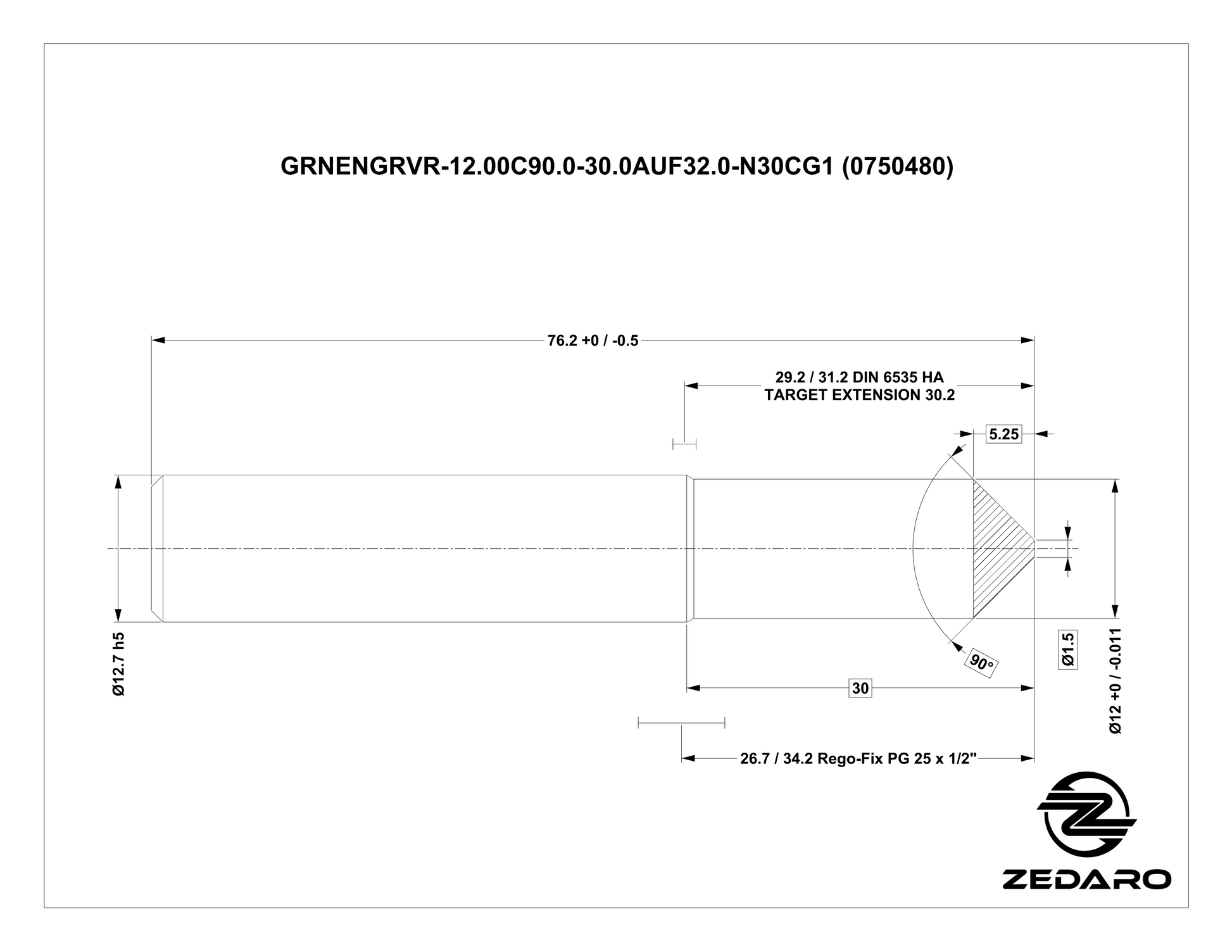

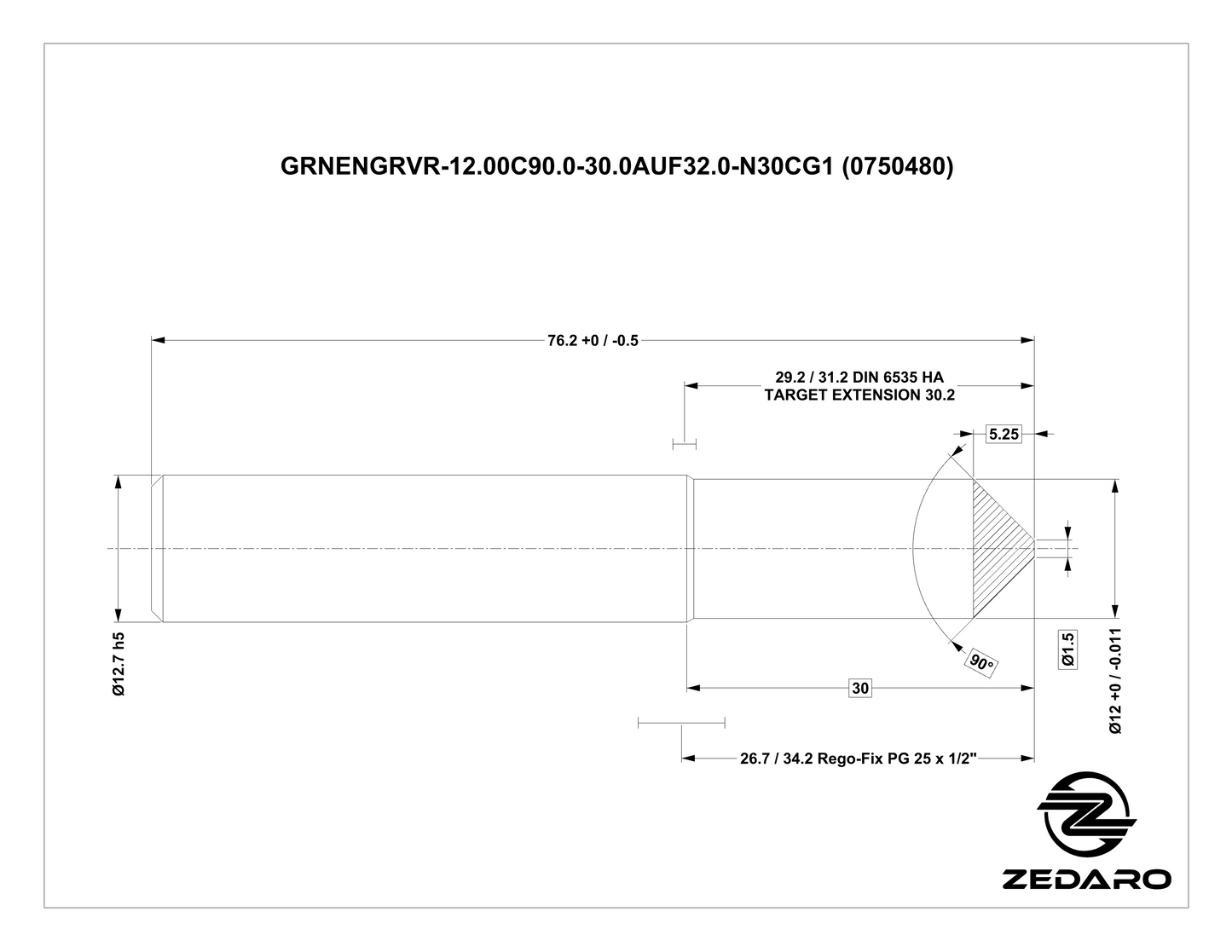

| Name | GRNENGRVR-12.00C90.0-30.0AUF32.0-N30CG1 | |
| EDP # | 0750480 | |
| Material | Wrought Aluminum | Application | Finish Chamfer/Deburr/Engrave (Engraver) |
| Form | Chamfer | |
| Cutting Diameter | 0.4724" | 12.000 mm |
| Total Tip Angle | 90.00° | |
| Taper per Side | 45.00° | |
| Length of Cut | 0.2067" | 5.250 mm |
| Reach | 1.1811" | 30.000 mm |
| Minimum Extension | 1.3" | 32.0 mm |
| Maximum Extension | 2.3" | 57.2 mm |
| Shank Diameter h5 | 0.5000" | 12.700 mm |
| Overall Length | 3.0" | 76 mm |
| Cutting Edges | 3 | |
| Tolerance Class | h6 | |
