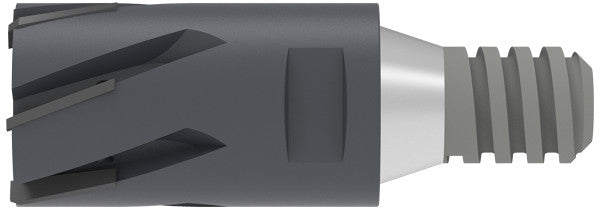

Ceratizit MUC.20,15.H7.DL.30°.KLG12.SW16 TIALN CoreLine - Exchangeable Reaming Heads - MultiChange 4022020150 (0750612)
Ceratizit MUC.20,15.H7.DL.30°.KLG12.SW16 TIALN CoreLine - Exchangeable Reaming Heads - MultiChange 4022020150 (0750612)
Couldn't load pickup availability
Ceratizit Article Number: 4022020150
Ceratizit Material Number: 4022020150
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MUC.20,15.H7.DL.30°.KLG12.SW16 TIALN CoreLine - Exchangeable Reaming Heads - MultiChange 4022020150 | |
| EDP # | 0750612 | |
| Weight (1 pc.) | 2.0 oz | 66.5 g |

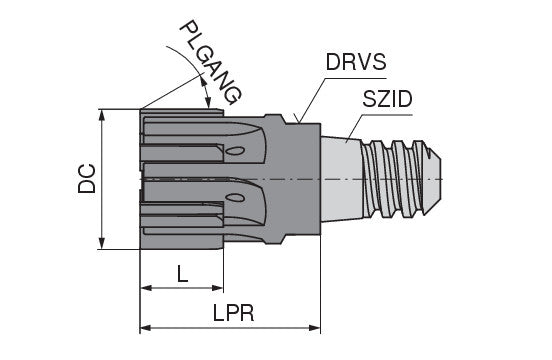

| Cutting diameter / DC H7 | 0.7933" | 20.150 mm |
| nominal size / SZID | 12.0000" | 304.800 mm |
| Cutting edge length / L | 0.4724" | 12.000 mm |
| Protruding length / LPR | 1.0236" | 26.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Drive size / DRVS | 0.6299" | 16.000 mm |
| Torque maximum / TQX | 20 Nm | |
| Coating name / Grade (Ceratizit) / COATN | TiAlN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
