Description
Note that this item has been discontinued and will not be re-stocked.
Ceratizit Article Number: 40230100
Ceratizit Material Number: 4023010000
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

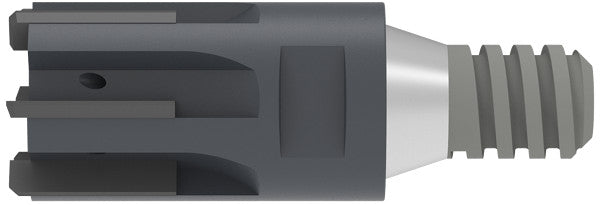

| Name | Ceratizit MUC.10,00.H7.DL.45°.KLG6.SW8 TIALN MultiChange - Reaming Head, For Thro' Holes 40230100 | |
| EDP # | 0750737 | |
| Weight (1 pc.) | 0.5 oz | 13.5 g |

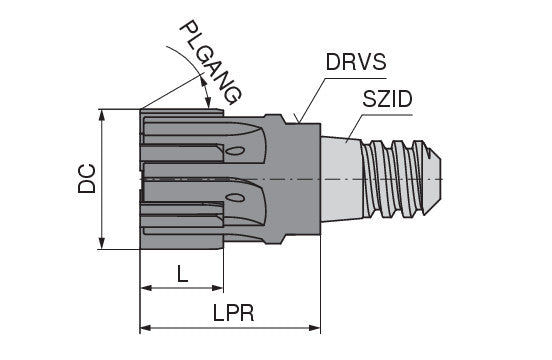

| Cutting diameter / DC H7 | 0.3937' | 10.000 mm |
| nominal size / SZID | 06 | |
| Cutting edge length / L | 0.3150' | 8.000 mm |
| Protruding length / LPR | 0.7087' | 18.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| Drive size / DRVS | 0.3150' | 8.000 mm |
| Torque maximum / TQX | 5 Nm | |
| Coating name / Grade (Ceratizit) / COATN | TiAlN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
