Description
Ceratizit Article Number: 50705125
Ceratizit Material Number: 142166
Ceratizit Komet Number (Unpacked): CT142166
Ceratizit Komet Number (Packed): CT142166
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

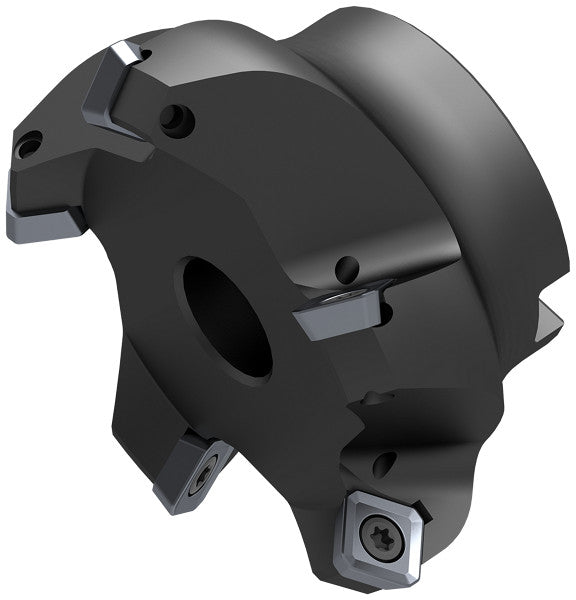

| Name | Ceratizit A270.125.R.07-12 MaxiMill 270-12 Shell Mill 50705125 | |
| EDP # | 0751595 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) Aluminum (Green) Composites (Black) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Stainless Steel (Yellow) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 122.0 oz | 3459 g |
| Product-Carbon-Footprint | B | |

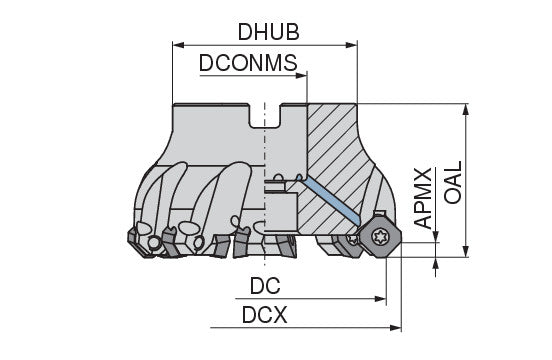

| Cutting diameter maximum / DCX | 5.4724" | 139.000 mm |
| Cutting diameter / DC | 4.9213" | 125.000 mm |
| Depth of cut maximum / APMX | 0.2362" | 6.000 mm |
| Face mounted insert count / ZNF | 7 | |
| Overall length / OAL | 2.4803" | 63.000 mm |
| Hub diameter / DHUB | 3.4646" | 88.000 mm |
| Mounting spigot diameter / DCONMS H6 | 1.5748" | 40.000 mm |
| Insert | SD../XD.. 1204.. | |
| torque moment | 5 Nm | |
| L4 | 1.2992" | 33.000 mm |
| Tool cutting edge angle / KAPR | 45 ° | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
