Description
Ceratizit Article Number: 50483602
Ceratizit Material Number: 11016023
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

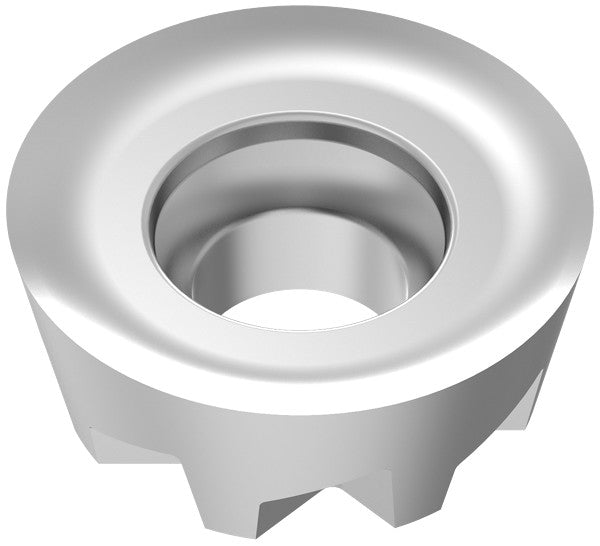

| Name | Ceratizit RPHX 1204M8FN-27P H216T CoreLine Carbide Milling indexable Insert 50483602 | |
| EDP # | 0751666 | |
| Weight (1 pc.) | 0.2 oz | 5.7 g |
| designation | 1204M8FN | |

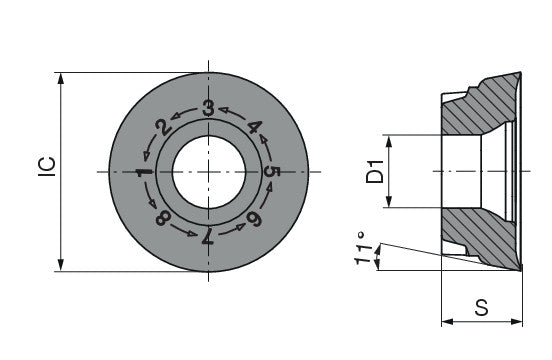

| Inscribed circle diameter / IC | 0.4724" | 12.000 mm |
| Fixing hole diameter / D1 | 0.1732" | 4.400 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Clearance angle major / AN | 11 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
