Description
Ceratizit Article Number: 6260851400
Ceratizit Material Number: 11091508
Ceratizit Komet Number (Unpacked): W58 13120.0423
Ceratizit Komet Number (Packed): W58131200423
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

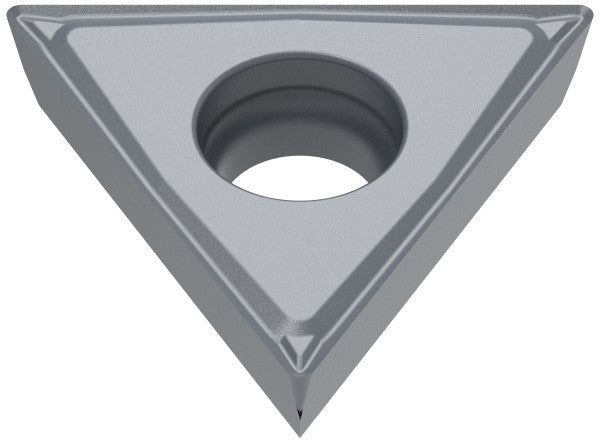

| Name | Ceratizit TPGX 090204FN-12 K10 CoreLine HM indexable Insert 6260851400 | |
| EDP # | 0751675 | |
| Weight (1 pc.) | 0.1 oz | 1.5 g |
| Product-Carbon-Footprint | C | |
| designation | 090204FN | |

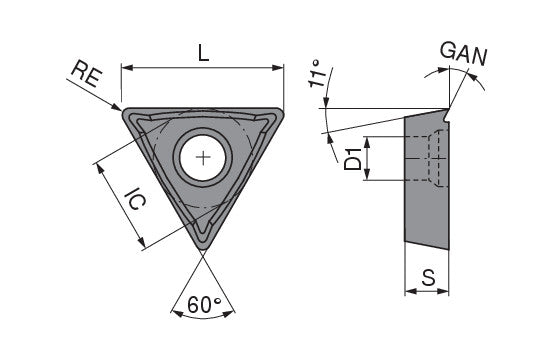

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3563" | 9.050 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2189" | 5.560 mm |
| Chip breaker (Ceratizit) / CBMD | -12 | |
| Coating name / Grade (Ceratizit) / COATN | K10 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
