Description
Ceratizit Article Number: 70352678
Ceratizit Material Number: 11346471
Ceratizit Komet Number (Unpacked): 59601 00044
Ceratizit Komet Number (Packed): 5960100044
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

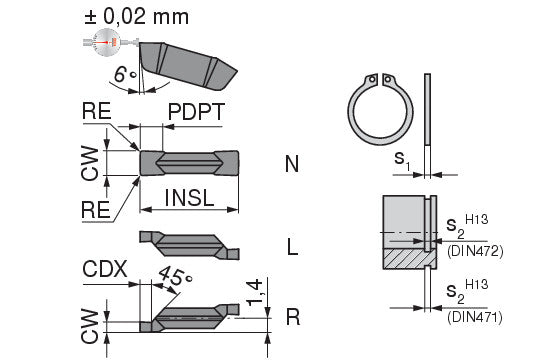

| Properties | ||
|---|---|---|

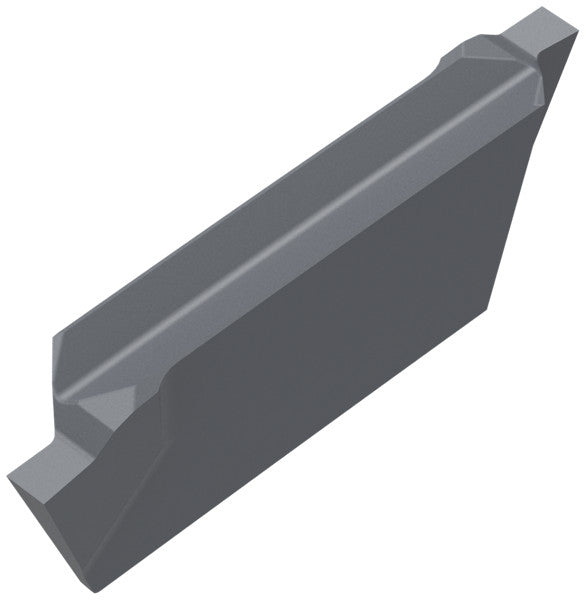

| Name | Ceratizit GX09-1S1.20R CTP1340 Circlip Groove Insert 09/16 Standard 70352678 | |
| EDP # | 0751760 | |
| Weight (1 pc.) | 0.1 oz | 1.6 g |
| Cutting width / CW +/-0,02 | 0.0472" | 1.200 mm |
| Insert hand / IH | R | |
| S1 - CIRCLIP | 0.0394" | 1.000 mm |
| S2 - CIRCLIP | 0.0433" | 1.100 mm |
| Cutting depth maximum / CDX | 0.0528" | 1.340 mm |
| Chip breaker (Ceratizit) / CBMD | > | |
| Coating name / Grade (Ceratizit) / COATN | CTP1340 | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
