Description
Ceratizit Article Number: 50500904
Ceratizit Material Number: 11360256
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.

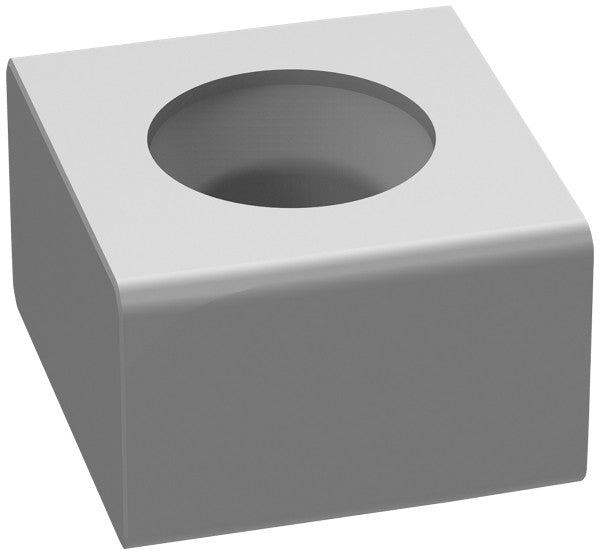

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit LNHX 1106PNSR CTN3105 MaxiMill - CERAMIC Milling indexable Insert - 50500904 | |
| EDP # | 0751772 | |
| Weight (1 pc.) | 0.1 oz | 3.2 g |
| designation | 1106PNSR | |

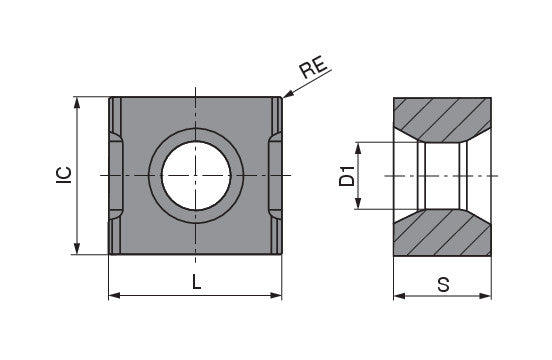

| Corner radius / RE | 0.0197" | 0.500 mm |
| Inscribed circle diameter / IC | 0.3937" | 10.000 mm |
| Fixing hole diameter / D1 | 0.1681" | 4.270 mm |
| Cutting edge length / L | 0.4331" | 11.000 mm |
| Trailing edge length / BS | 0.0079" | 0.200 mm |
| Insert thickness / S | 0.2500" | 6.350 mm |
| Clearance angle major / AN | 0 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
