Description
Ceratizit Article Number: 70327010
Ceratizit Material Number: 11363569
Ceratizit Komet Number (Unpacked): 11363 569
Ceratizit Komet Number (Packed): 11363569
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

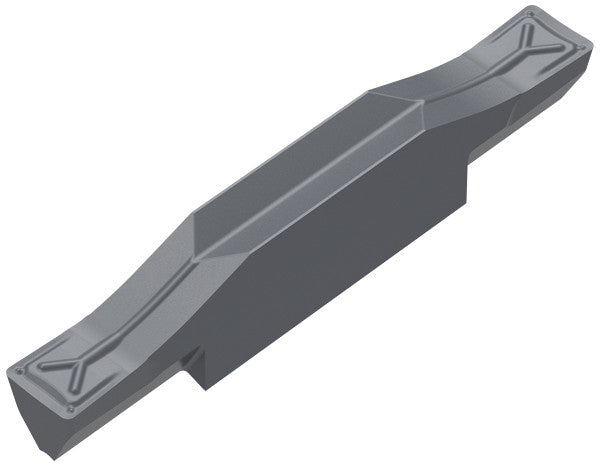

| Name | Ceratizit AX10-E3.00N0.30-20-F50 CTP1340 Grooving Insert 70327010 | |
| EDP # | 0751773 | |
| Weight (1 pc.) | 0.2 oz | 6.0 g |
| Product-Carbon-Footprint | B | |

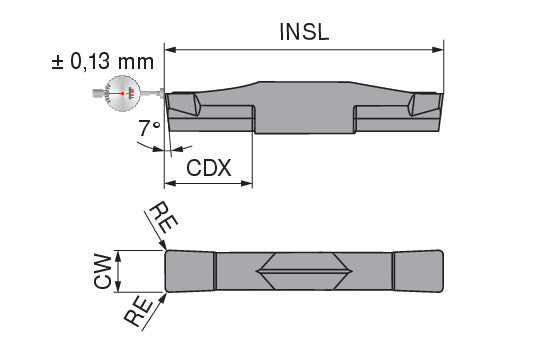

| Cutting width / CW +/-0,02 | 0.1181" | 3.000 mm |
| Corner radius / RE +/-0,05 | 0.0118" | 0.300 mm |
| Cutting depth maximum / CDX | 0.3937" | 10.000 mm |
| Axial groove outside diameter minimum / DAXN | 0.7874" | 20.000 mm |
| Insert hand / IH | N | |
| Chip breaker (Ceratizit) / CBMD | -F50 | |
| Coating name / Grade (Ceratizit) / COATN | CTP1340 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
