Description
Ceratizit Article Number: 7461007300
Ceratizit Material Number: 11478481
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

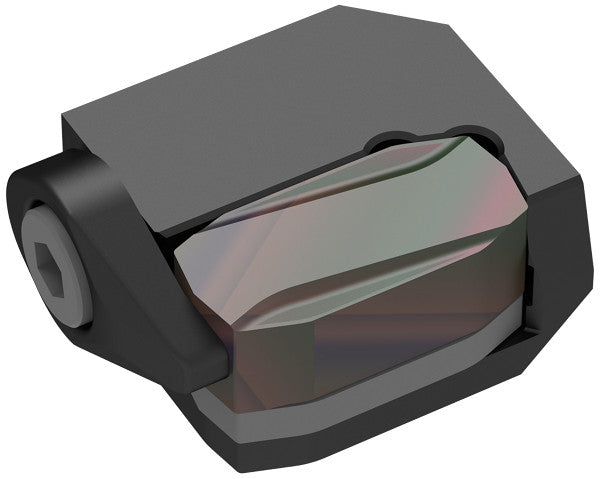

| Name | Ceratizit CA00-YNUF2009 MaxiTurn Single Cartridge CA..-YNUF.. 7461007300 | |
| EDP # | 0751800 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 6.0 oz | 174 g |
| Product-Carbon-Footprint | E | |
| Designation | CA00-YNUF2009 | |

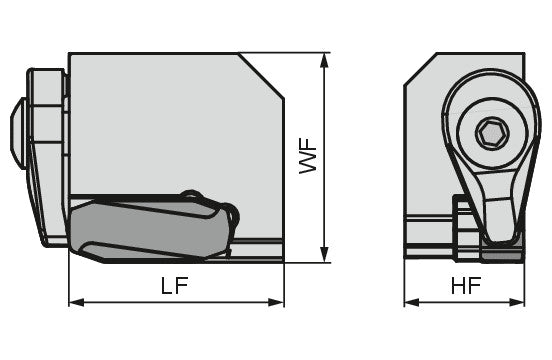

| Functional length / LF | 1.6535" | 42.000 mm |
| Functional height / HF | 0.8661" | 22.000 mm |
| Functional width / WF | 1.5354" | 39.000 mm |
| Insert | YNUF 200920 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
