Description
Ceratizit Article Number: 50507508
Ceratizit Material Number: 11583843
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

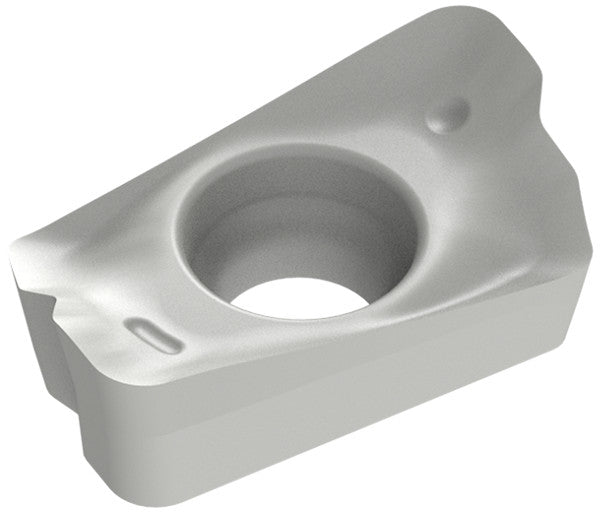

| Name | Ceratizit XDKT 070308FR-F20 CTWN215 CoreLine Carbide Milling indexable Insert 50507508 | |
| EDP # | 0751848 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| Product-Carbon-Footprint | C | |
| designation | 070308FR | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Inscribed circle diameter / IC | 0.1929" | 4.900 mm |
| Fixing hole diameter / D1 | 0.0984" | 2.500 mm |
| Cutting edge length / L | 0.3071" | 7.800 mm |
| Trailing edge length / BS | 0.0472" | 1.200 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Clearance angle major / AN | 15 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
