Description
Ceratizit Article Number: 5076716000
Ceratizit Material Number: 11696039
Ceratizit Komet Number (Unpacked): 59599 04059
Ceratizit Komet Number (Packed): 5959904059
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

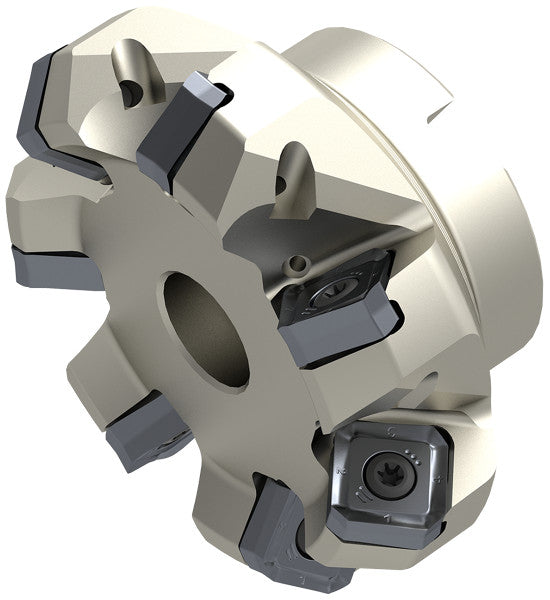

| Name | Ceratizit A271.160.R.12-17 MaxiMill 271-17 Face Mill 5076716000 | |
| EDP # | 0751859 | |
| Workpiece Material(s) | HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) HiTemp Alloy (Orange) Cast Iron (Red) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 188.0 oz | 5331 g |

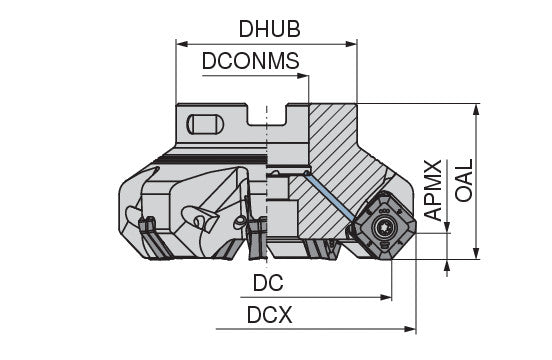

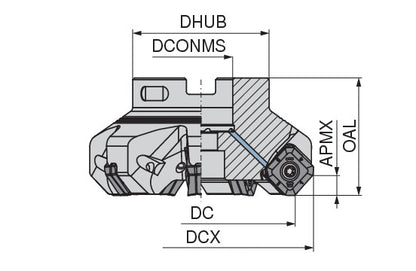

| Cutting diameter maximum / DCX | 6.9331" | 176.100 mm |
| Cutting diameter / DC | 6.2992" | 160.000 mm |
| Depth of cut maximum / APMX | 0.3307" | 8.400 mm |
| Face mounted insert count / ZNF | 12 | |
| Overall length / OAL | 2.4803" | 63.000 mm |
| Hub diameter / DHUB | 4.0945" | 104.000 mm |
| Mounting spigot diameter / DCONMS | 1.5748" | 40.000 mm |
| torque moment | 5 Nm | |
| L4 | 1.1417" | 29.000 mm |
| Tool cutting edge angle / KAPR | 47 ° | |
| Insert | SAKU 1706 | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
