Description
Ceratizit Article Number: 5868106202
Ceratizit Material Number: 11773425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

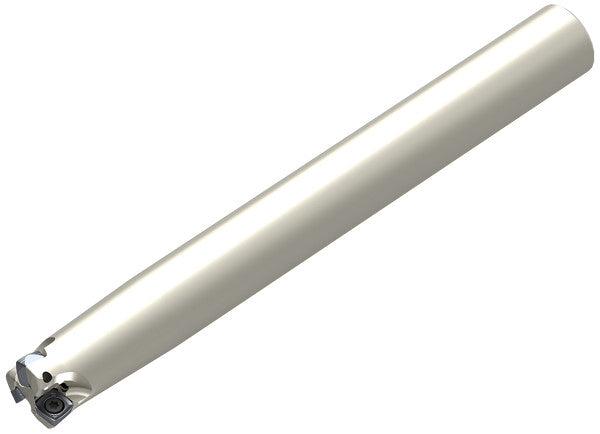

| Name | Ceratizit CHFC.0625.R.02-06-A-150-EF-800 CoreLine End Mills 5868106202 | |
| EDP # | 0751872 | |
| Workpiece Material(s) | Steel (Blue) HiTemp Alloy (Orange) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) Stainless Steel (Yellow) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 10.0 oz | 290 g |

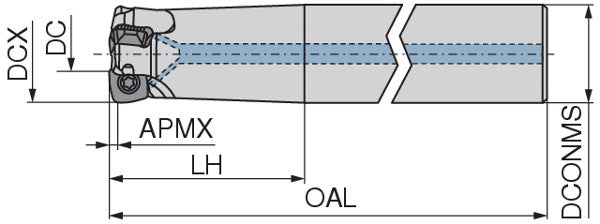

| Cutting diameter maximum / DCX | 0.6250" | 15.880 mm |
| Cutting diameter / DC | 0.2870" | 7.290 mm |
| Face mounted insert count / ZNF | 2.0000" | 50.800 mm |
| Protruding length / LPR | 6.1024" | 155.000 mm |
| Depth of cut maximum / APMX | 0.0310" | 0.790 mm |
| Neck Diameter / DN | 0.5463" | 13.880 mm |
| Overall length / OAL | 8.0000" | 203.200 mm |
| Head length / LH | 1.5000" | 38.100 mm |
| Neck diameter (BD) / BD | 0.6012" | 15.270 mm |
| Mounting spigot diameter / DCONMS h6 | 0.6250" | 15.880 mm |
| Rotational speed maximum / RPMX | 18100 1/min. | |
| Insert | XPLX 0603.. | |
| torque moment | 1.2 Nm | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
