Description
Ceratizit Article Number: 7870342030
Ceratizit Material Number: 11800051
Ceratizit Komet Number (Unpacked): 11800 051
Ceratizit Komet Number (Packed): 11800051
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

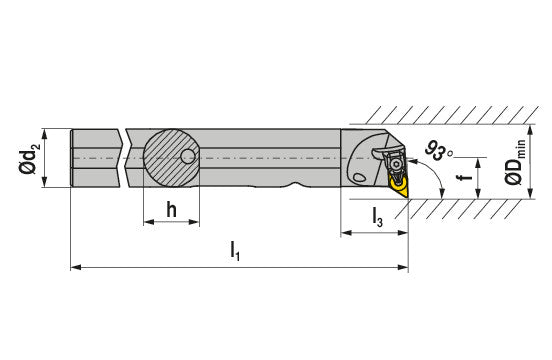

| Properties | ||
|---|---|---|

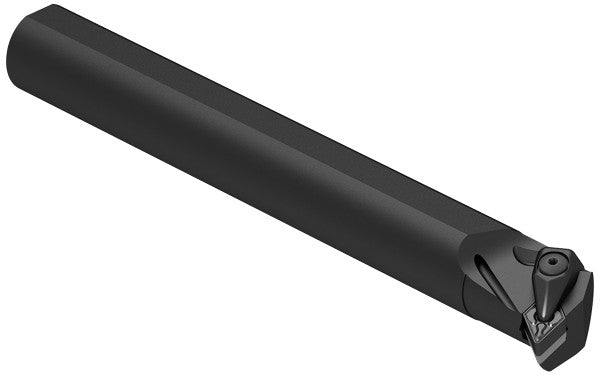

| Name | Ceratizit S20U DDUNL 4N MaxiLock-D - 93° - Boring Bar With Top Clamping 7870342030 | |
| EDP # | 0751950 | |
| Workpiece Material(s) | Cast Iron (Red) Steel (Blue) Hard/Tool Steel (Grey) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) Stainless Steel (Yellow) Aluminum (Green) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Mounting spigot diameter / DCONMS | 1.2500" | 31.750 mm |
| Shank height / H | 1.1180" | 28.397 mm |
| Overall length / OAL | 14.0000" | 355.600 mm |
| Reduced body diameter length / LDRED | 1.7710" | 44.983 mm |
| Functional width / WF | 0.7650" | 19.431 mm |
| Minimum bore diameter / DMIN | 1.5300" | 38.862 mm |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
