Description
Ceratizit Article Number: 7871920808
Ceratizit Material Number: 11800102
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit A08M SCLCL 2 CoreLine - 95° - Boring Bar With Screw Clamping 7871920808 | |
| EDP # | 0751996 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

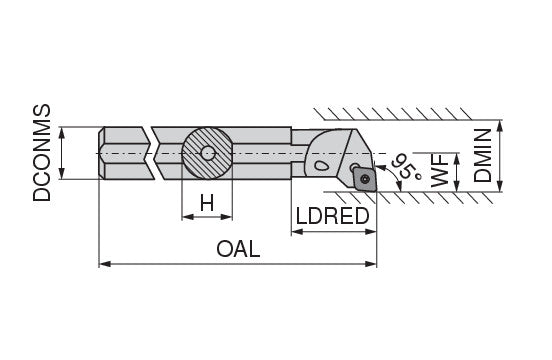

| Mounting spigot diameter / DCONMS | 0.5000" | 12.700 mm |
| Shank height / H | 0.4600" | 11.680 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Reduced body diameter length / LDRED | 0.9100" | 23.110 mm |
| Functional width / WF | 0.3120" | 7.920 mm |
| Minimum bore diameter / DMIN | 0.6250" | 15.880 mm |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
