Description
Ceratizit Article Number: 7871931010
Ceratizit Material Number: 11800106
Ceratizit Komet Number (Unpacked): 11800 106
Ceratizit Komet Number (Packed): 11800106
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit A10R SCLCL 3 MaxiLock-S - 95° - Boring Bar With Screw Clamping 7871931010 | |
| EDP # | 0752000 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) Stainless Steel (Yellow) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

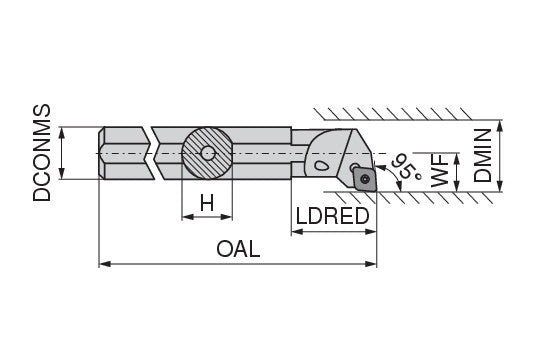

| Mounting spigot diameter / DCONMS | 0.6250" | 15.875 mm |
| Shank height / H | 0.5800" | 14.732 mm |
| Overall length / OAL | 8.0000" | 203.200 mm |
| Reduced body diameter length / LDRED | 1.0600" | 26.924 mm |
| Functional width / WF | 0.4060" | 10.312 mm |
| Minimum bore diameter / DMIN | 0.8120" | 20.625 mm |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
