Description
Ceratizit Article Number: 7872020606
Ceratizit Material Number: 11800113
Ceratizit Komet Number (Unpacked): 11800 113
Ceratizit Komet Number (Packed): 11800113
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit A06M SDUCR 2 MaxiLock-S - 93° - Boring Bar With Screw Clamping 7872020606 | |
| EDP # | 0752007 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) HiTemp Alloy (Orange) Composites (Black) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

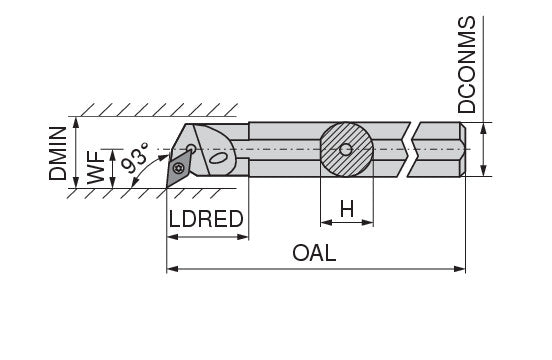

| Mounting spigot diameter / DCONMS | 0.3750" | 9.525 mm |
| Shank height / H | 0.3400" | 8.636 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Reduced body diameter length / LDRED | 0.8300" | 21.082 mm |
| Functional width / WF | 0.3750" | 9.525 mm |
| Minimum bore diameter / DMIN | 0.7500" | 19.050 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
