Description
Ceratizit Article Number: 7872191212
Ceratizit Material Number: 11800120
Ceratizit Komet Number (Unpacked): 11800 120
Ceratizit Komet Number (Packed): 11800120
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

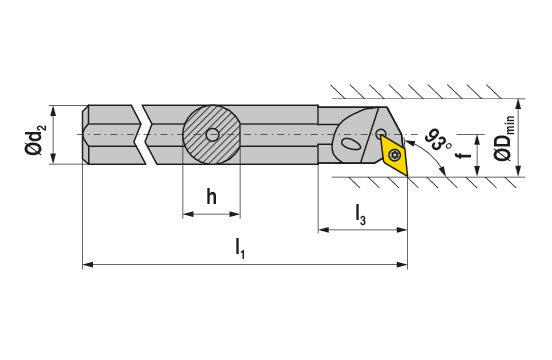

| Name | Ceratizit A12S SDUCL 3M MaxiLock-S - 93° - Boring Bar With Screw Clamping 7872191212 | |
| EDP # | 0752013 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Composites (Black) HiTemp Alloy (Orange) Cast Iron (Red) HiTemp Alloy (Orange) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Mounting spigot diameter / DCONMS | 0.7500" | 19.050 mm |
| Shank height / H | 0.7100" | 18.034 mm |
| Overall length / OAL | 10.0000" | 254.000 mm |
| Reduced body diameter length / LDRED | 1.5800" | 40.132 mm |
| Functional width / WF | 0.6250" | 15.875 mm |
| Minimum bore diameter / DMIN | 1.2500" | 31.750 mm |
| Version | Left | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
