Description
Ceratizit Article Number: 7872420808
Ceratizit Material Number: 11800123
Ceratizit Komet Number (Unpacked): 11800 123
Ceratizit Komet Number (Packed): 11800123
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

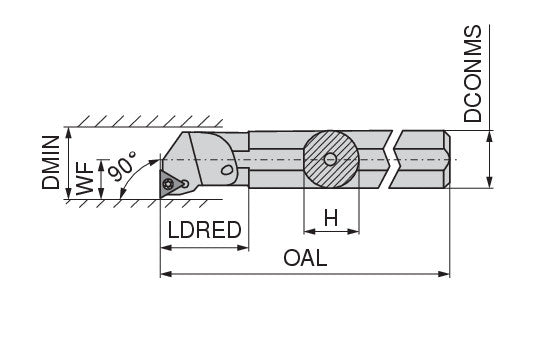

| Name | Ceratizit A08M STFCR 2 MaxiLock-S - 90° - Boring Bar With Screw Clamping 7872420808 | |
| EDP # | 0752016 | |
| Workpiece Material(s) | Aluminum (Green) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) Stainless Steel (Yellow) Stainless Steel (Yellow) Cast Iron (Red) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Mounting spigot diameter / DCONMS | 0.5000" | 12.700 mm |
| Shank height / H | 0.4600" | 11.684 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Reduced body diameter length / LDRED | 0.8000" | 20.320 mm |
| Functional width / WF | 0.3120" | 7.925 mm |
| Minimum bore diameter / DMIN | 0.6250" | 15.875 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
