Description
Ceratizit Article Number: 7872421010
Ceratizit Material Number: 11800125
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

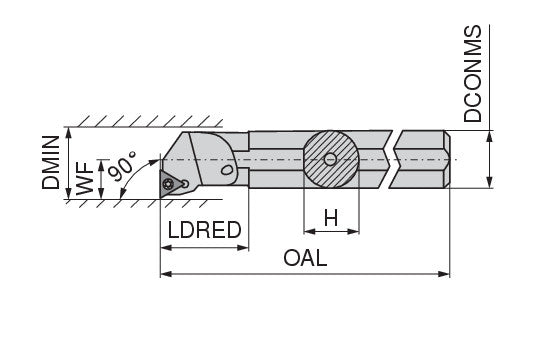

| Properties | ||
|---|---|---|
| Name | Ceratizit A10R STFCR 2 CoreLine - 90° - Boring Bar With Screw Clamping 7872421010 | |
| EDP # | 0752018 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) Steel (Blue) Cast Iron (Red) HiTemp Alloy (Orange) Steel (Blue) Cast Iron (Red) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Mounting spigot diameter / DCONMS | 0.6250" | 15.880 mm |
| Shank height / H | 0.5800" | 14.730 mm |
| Overall length / OAL | 8.0000" | 203.200 mm |
| Reduced body diameter length / LDRED | 0.9600" | 24.380 mm |
| Functional width / WF | 0.4060" | 10.310 mm |
| Minimum bore diameter / DMIN | 0.8120" | 20.620 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
