Description
Ceratizit Article Number: 7872821021
Ceratizit Material Number: 11800131
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit S10R SVUCR 2E CoreLine - 93° - Boring Bar With Screw Clamping 7872821021 | |
| EDP # | 0752023 | |
| Workpiece Material(s) | Hard/Tool Steel (Grey) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Cast Iron (Red) HiTemp Alloy (Orange) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

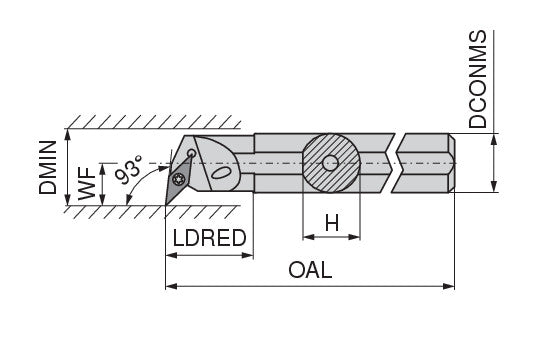

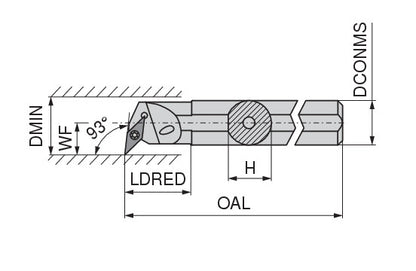

| Mounting spigot diameter / DCONMS | 0.6250" | 15.880 mm |
| Shank height / H | 0.5800" | 14.730 mm |
| Overall length / OAL | 8.0000" | 203.200 mm |
| Reduced body diameter length / LDRED | 1.0600" | 26.920 mm |
| Functional width / WF | 0.5000" | 12.700 mm |
| Minimum bore diameter / DMIN | 0.8670" | 22.020 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
