Description
Ceratizit Article Number: 75218204
Ceratizit Material Number: 11810792
Ceratizit Komet Number (Unpacked): 59601 00119
Ceratizit Komet Number (Packed): 5960100119
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

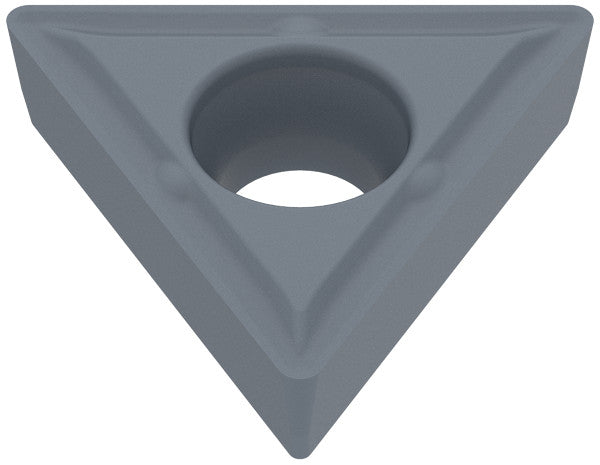

| Name | Ceratizit TCMT 090204EN-M55 CTPM125 75218204 | |
| EDP # | 0752032 | |
| Weight (1 pc.) | 0.04 oz | 1.0 g |
| Product-Carbon-Footprint | D | |
| designation | 090204EN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3780" | 9.600 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.0984" | 2.500 mm |
| Inscribed circle diameter / IC | 0.2189" | 5.560 mm |
| Insert index count / NOI | 3 | |
| Chip breaker (Ceratizit) / CBMD | -M55 | |
| Coating name / Grade (Ceratizit) / COATN | CTPM125 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
