Description
Ceratizit Article Number: 10830112
Ceratizit Material Number: 11818976
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

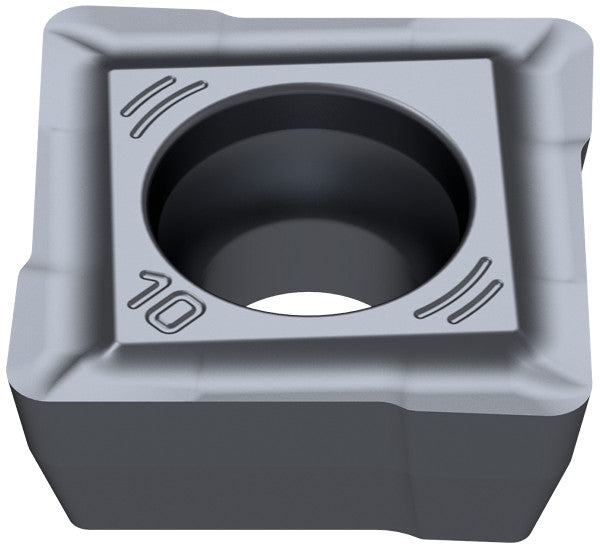

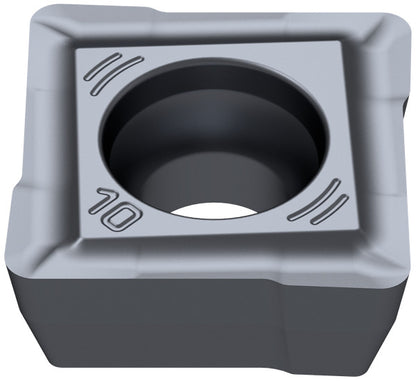

| Name | Ceratizit SONT 124810ER-M30 CTPP430 CoreLine Carbide Drilling indexable Insert 10830112 | |
| EDP # | 0752035 | |
| Weight (1 pc.) | 0.3 oz | 8.6 g |

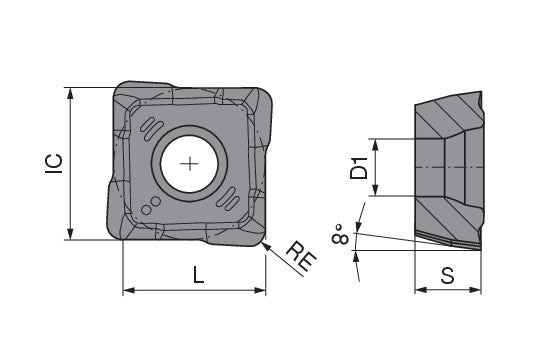

| Inscribed circle diameter / IC | 0.4567" | 11.600 mm |
| designation | 124810.0000" | 3170174.000 mm |
| insert thickness | 48.0000" | 1219.200 mm |
| Fixing hole diameter / D1 | 0.1614" | 4.100 mm |
| Insert thickness / S | 0.1890" | 4.800 mm |
| Corner radius / RE | 0.0394" | 1.000 mm |
| Cutting edge length / L | 0.4331" | 11.000 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
