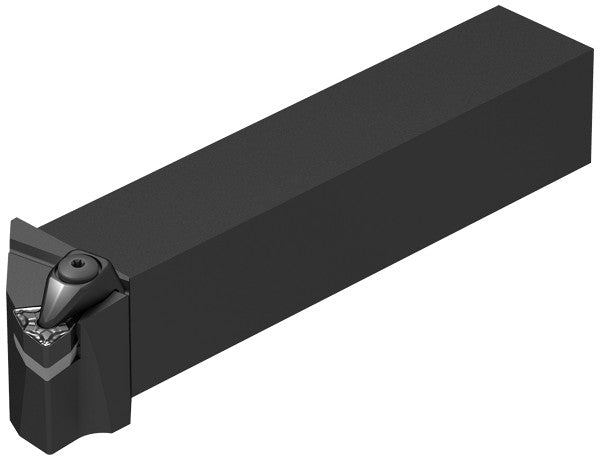

Ceratizit DWLNR 12-4B-N CoreLine 95° Toolholder With Top Clamping 7851401293 (0752054)
Ceratizit DWLNR 12-4B-N CoreLine 95° Toolholder With Top Clamping 7851401293 (0752054)
Couldn't load pickup availability
Ceratizit Article Number: 7851401293
Ceratizit Material Number: 11829979
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DWLNR 12-4B-N CoreLine 95° Toolholder With Top Clamping 7851401293 | |
| EDP # | 0752054 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Stainless Steel (Yellow) Steel (Blue) Aluminum (Green) HiTemp Alloy (Orange) Cast Iron (Red) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

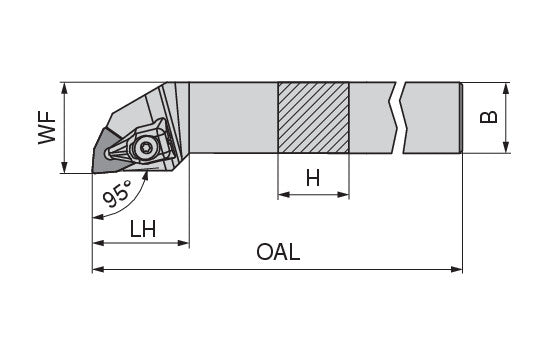

| Shank height / H | 0.7500" | 19.050 mm |
| Shank width / B | 0.7500" | 19.050 mm |
| Overall length / OAL | 4.5000" | 114.300 mm |
| Head length / LH | 1.2500" | 31.750 mm |
| Functional width / WF | 1.0000" | 25.400 mm |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
