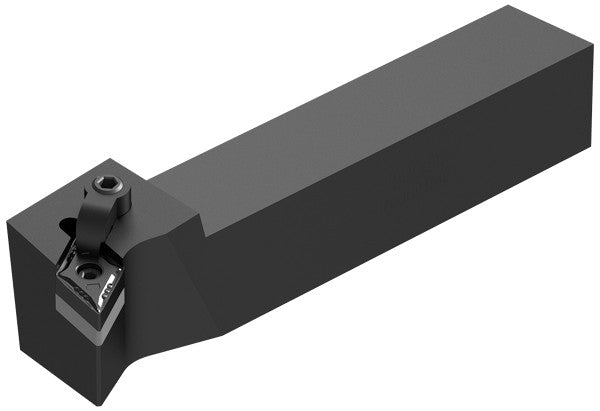

Ceratizit MDQNR 16-4D CoreLine 107.5° Toolholder With Top Clamping 7852801689 (0752069)
Ceratizit MDQNR 16-4D CoreLine 107.5° Toolholder With Top Clamping 7852801689 (0752069)
Couldn't load pickup availability
Ceratizit Article Number: 7852801689
Ceratizit Material Number: 11829995
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MDQNR 16-4D CoreLine 107.5° Toolholder With Top Clamping 7852801689 | |
| EDP # | 0752069 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Stainless Steel (Yellow) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) HiTemp Alloy (Orange) Aluminum (Green) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |
| Shank height / H | 1.0000" | 25.400 mm |
| Shank width / B | 1.0000" | 25.400 mm |
| Overall length / OAL | 6.0000" | 152.400 mm |
| Head length / LH | 1.3700" | 34.800 mm |
| Functional width / WF | 1.2500" | 31.750 mm |
| Clamping system | Lever and top clamping for positive inserts | |
| holder form | MDQN 107,5° | |
| Version | Right | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
