Description
Ceratizit Article Number: 70364904
Ceratizit Material Number: 11894688
Ceratizit Komet Number (Unpacked): 70364 904
Ceratizit Komet Number (Packed): 70364904
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

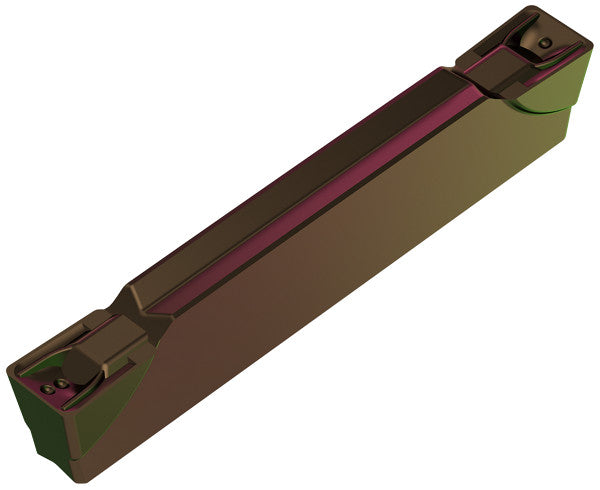

| Name | Ceratizit GX24-3E5.00N0.40-M40 CTCP325 Insert 70364904 | |
| EDP # | 0752175 | |
| Weight (1 pc.) | 0.2 oz | 5.7 g |
| Cutting width / CW +/-0,05 | 0.1969" | 5.000 mm |
| Corner radius / RE +/-0,05 | 0.0157" | 0.400 mm |
| Insert hand / IH | N | |
| Chip breaker (Ceratizit) / CBMD | -M40 | |
| Coating name / Grade (Ceratizit) / COATN | CTCP325 | |
| Product-Carbon-Footprint | D | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
