Description
Ceratizit Article Number: 10830709
Ceratizit Material Number: 11977335
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

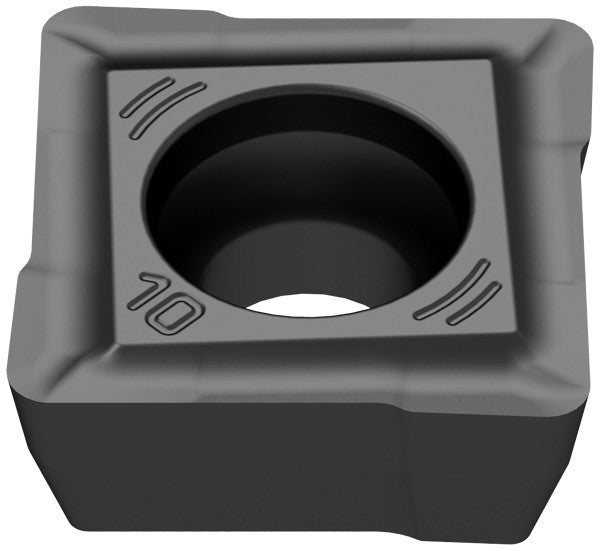

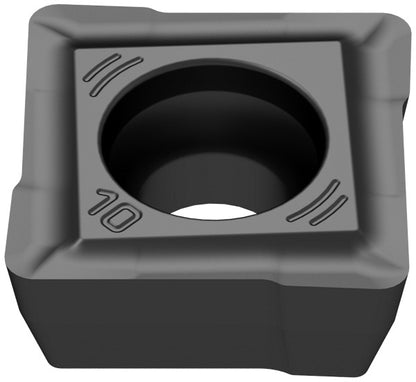

| Name | Ceratizit SONT 093808ER-M30 CTCP420 CoreLine Carbide Drilling indexable Insert 10830709 | |
| EDP # | 0752220 | |
| Weight (1 pc.) | 0.1 oz | 3.5 g |

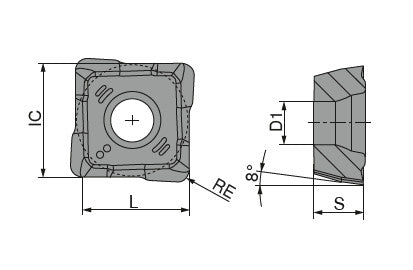

| Inscribed circle diameter / IC | 0.3504" | 8.900 mm |
| designation | 93808.0000" | 2382723.200 mm |
| insert thickness | 38.0000" | 965.200 mm |
| Fixing hole diameter / D1 | 0.1378" | 3.500 mm |
| Insert thickness / S | 0.1496" | 3.800 mm |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Cutting edge length / L | 0.3346" | 8.500 mm |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
