Description
Ceratizit Article Number: 70119056
Ceratizit Material Number: 12046554
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

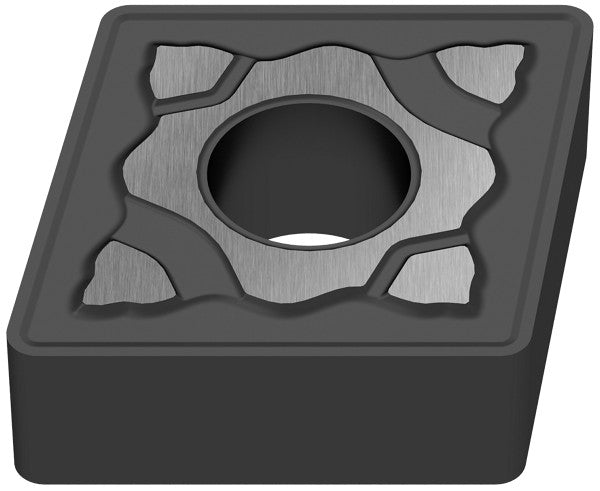

| Name | Ceratizit CNMG 190612EN-M70 CTCK110 CoreLine 70119056 | |
| EDP # | 0752247 | |
| Weight (1 pc.) | 1.0 oz | 29.8 g |
| designation | 190612EN | |
| Corner radius / RE | 0.0472" | 1.200 mm |
| Cutting edge length / L | 0.7598" | 19.300 mm |
| Insert thickness / S | 0.2500" | 6.350 mm |
| Fixing hole diameter / D1 | 0.3126" | 7.940 mm |
| Inscribed circle diameter / IC | 0.7500" | 19.050 mm |
| 643EN | ||
| Insert index count / NOI | 4.0000" | 101.600 mm |
| Chip breaker (Ceratizit) / CBMD | -M70 | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
