Description
Ceratizit Article Number: 51118358
Ceratizit Material Number: 12168730
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

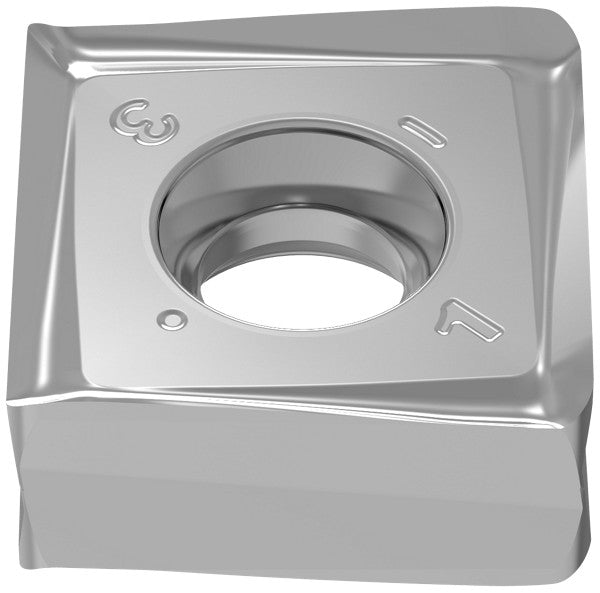

| Name | Ceratizit SNHU 09T308FR-F10 CTWN215 CoreLine Carbide Milling indexable Insert 51118358 | |
| EDP # | 0752319 | |
| Weight (1 pc.) | 0.2 oz | 4.3 g |

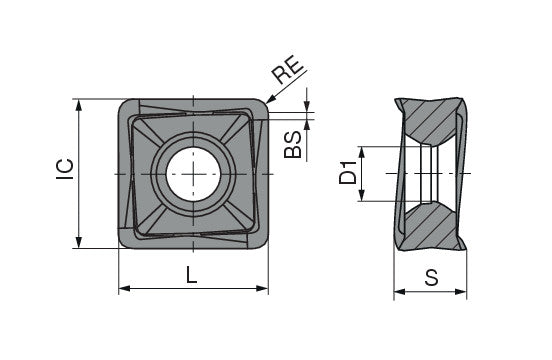

| designation | 09T308FR | |
| Corner radius / RE | 0.0315" | 0.800 mm |
| Inscribed circle diameter / IC | 0.3602" | 9.150 mm |
| Fixing hole diameter / D1 | 0.1516" | 3.850 mm |
| Cutting edge length / L | 0.3602" | 9.150 mm |
| Trailing edge length / BS | 0.0551" | 1.400 mm |
| Insert thickness / S | 0.1457" | 3.700 mm |
| Clearance angle major / AN | 6.5 ° | |
| Coating name / Grade (Ceratizit) / COATN | Uncoated | |
| Product-Carbon-Footprint | C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
