Description
Ceratizit Article Number: 4050514010
Ceratizit Material Number: 12399443
Ceratizit Komet Number (Unpacked): 640.710140C0120
Ceratizit Komet Number (Packed): 640710140C0120
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

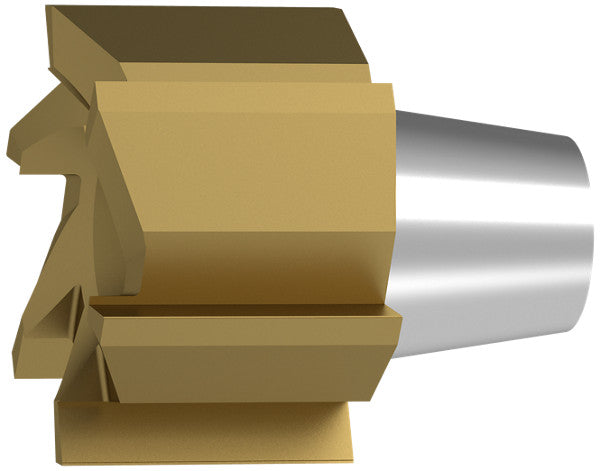

| Name | Ceratizit RM.14,01.H7.ASG3000.KLG1 TIN Reamax - Exchangeable Reaming Heads 4050514010 | |
| EDP # | 0752483 | |
| Weight (1 pc.) | 3.0 oz | 90.0 g |
| Cutting diameter / DC H7 | 0.5516" | 14.010 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Coupling Size | 1.0000" | 25.400 mm |
| Cutting edge length / L | 0.3543" | 9.000 mm |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
