Description
Ceratizit Article Number: 4060517000
Ceratizit Material Number: 12402434
Ceratizit Komet Number (Unpacked): 56J.710170C0086
Ceratizit Komet Number (Packed): 56J710170C0086
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit MM.17,00.H7.EKZ.ASG3000.L100 TIN KOMET Monomax - High-speed reamers, Short 4060517000 | |
| EDP # | 0752822 | |
| Weight (1 pc.) | 4.0 oz | 124 g |

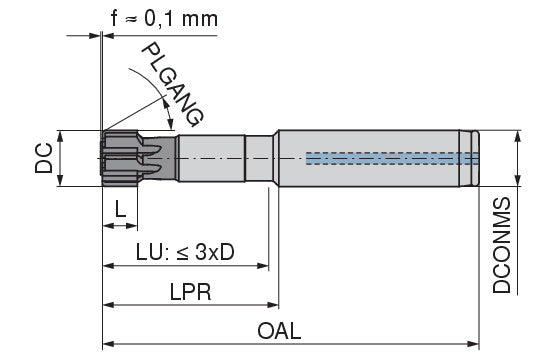

| Cutting diameter / DC H7 | 0.6693" | 17.000 mm |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Usable length / LU | 1.7717" | 45.000 mm |
| Cutting edge length / L | 0.3740" | 9.500 mm |
| Mounting spigot diameter / DCONMS h6 | 0.6299" | 16.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| Protruding length / LPR | 1.9685" | 50.000 mm |
| Coating name / Grade (Ceratizit) / COATN | TiN | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
