Description
Ceratizit Article Number: 4062700005
Ceratizit Material Number: 12402592
Ceratizit Komet Number (Unpacked): 56J.930120C0118
Ceratizit Komet Number (Packed): 56J930120C0118
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

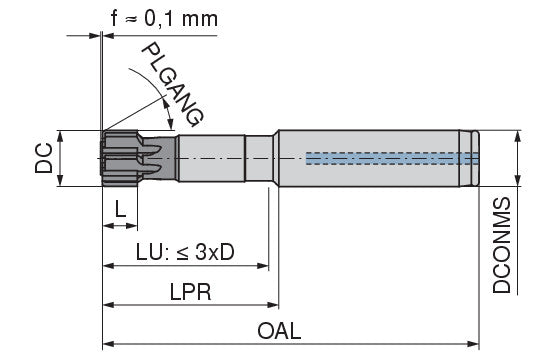

| Properties | ||
|---|---|---|
| Name | Ceratizit MM.11,95.+0,010/-0,010.45°.L95 CWC10 Reamax High-speed reamers, Short Mono 4062700005 | |
| EDP # | 0752941 | |
| Weight (1 pc.) | 2.0 oz | 67.3 g |
| Cutting diameter / DC +0,010/-0,010 mm | 0.4705" | 11.950 mm |
| Overall length / OAL | 3.7402" | 95.000 mm |
| Usable length / LU | 1.7717" | 45.000 mm |
| Cutting edge length / L | 0.3740" | 9.500 mm |
| Mounting spigot diameter / DCONMS h6 | 0.4724" | 12.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6.0000" | 152.400 mm |
| Protruding length / LPR | 1.9685" | 50.000 mm |
| Coating name / Grade (Ceratizit) / COATN | DST | |
Tool Form:
'R' form tools are the classic end-mill shape, with straight sides (flanks) and in this case a flat tip with generally sharp corners. This form is the most common of all, and perfect for prismatic features.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
