Description
Ceratizit Article Number: 1087214501
Ceratizit Material Number: 12410521
Ceratizit Komet Number (Unpacked): U42 01450
Ceratizit Komet Number (Packed): U4201450
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Pentron 20x50/W8010/14,5/30/R - Indexable Drill 1087214501 | |
| EDP # | 0752994 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Hard/Tool Steel (Grey) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Composites (Black) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 154 g |
| Product-Carbon-Footprint | B | |

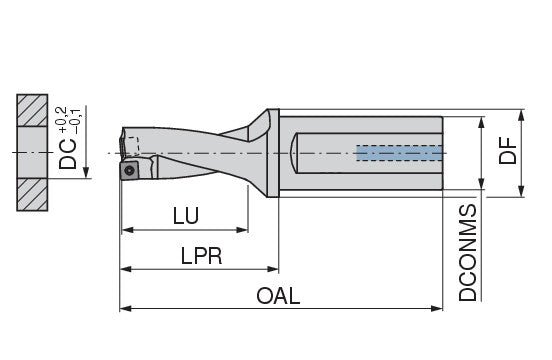

| Cutting diameter / DC | 0.5709" | 14.500 mm |
| Mounting spigot diameter / DCONMS | 0.7874" | 20.000 mm |
| Flange diameter / DF | 1.1811" | 30.000 mm |
| Overall length / OAL | 3.7008" | 94.000 mm |
| Protruding length / LPR | 1.7323" | 44.000 mm |
| Usable length / LU | 1.1811" | 30.000 mm |
| Insert | SOGX 040204 | |
| torque moment | 0.38 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
