Description
Ceratizit Article Number: 1087517595
Ceratizit Material Number: 12410796
Ceratizit Komet Number (Unpacked): U45 51750
Ceratizit Komet Number (Packed): U4551750
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit KUB Pentron ABS50/W8012/17,5/90/R - Indexable Drill 1087517595 | |
| EDP # | 0753275 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) HiTemp Alloy (Orange) Composites (Black) Hard/Tool Steel (Grey) Cast Iron (Red) All Materials (White) | |
| Weight (1 pc.) | 19.0 oz | 530 g |
| Product-Carbon-Footprint | B | |

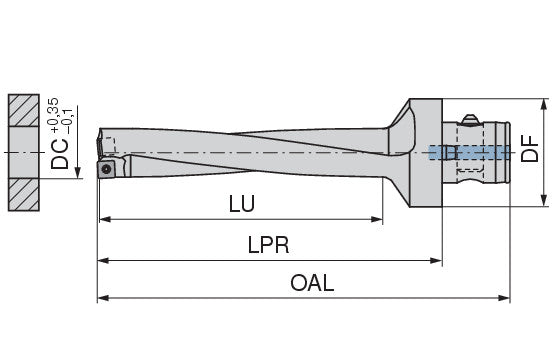

| Cutting diameter / DC | 0.6890" | 17.500 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Overall length / OAL | 5.9843" | 152.000 mm |
| Protruding length / LPR | 4.7638" | 121.000 mm |
| Usable length / LU | 3.5433" | 90.000 mm |
| Insert | SOGX 050204 | |
| torque moment | 0.62 Nm | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
