Description
Ceratizit Article Number: 1082130303
Ceratizit Material Number: 12411248
Ceratizit Komet Number (Unpacked): W29 10030.048425
Ceratizit Komet Number (Packed): W2910030048425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

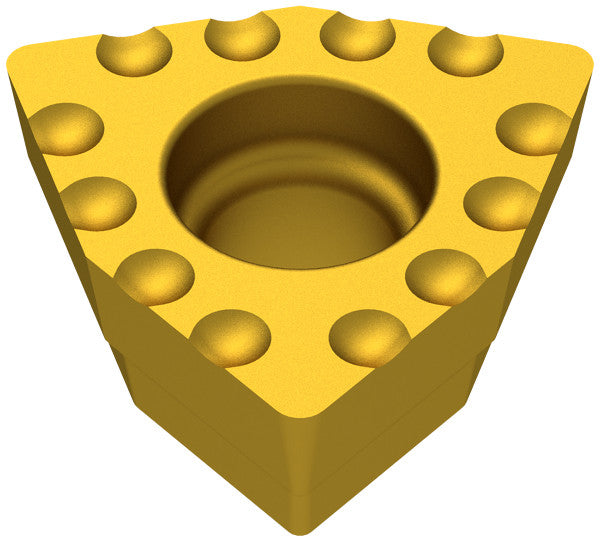

| Name | Ceratizit WOEX 030204SN-03 BK8425 CoreLine Carbide Drilling indexable Insert 1082130303 | |
| EDP # | 0753452 | |
| Weight (1 pc.) | 0.1 oz | 1.8 g |
| Inscribed circle diameter / IC | 0.1969" | 5.000 mm |
| designation | 30204.0000" | 767181.600 mm |
| insert thickness | 2.0000" | 50.800 mm |
| Fixing hole diameter / D1 | 0.0906" | 2.300 mm |
| Insert thickness / S | 0.0906" | 2.300 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.1260" | 3.200 mm |
| Coating name / Grade (Ceratizit) / COATN | BK8425 | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
