Description
Ceratizit Article Number: 1082130403
Ceratizit Material Number: 12411252
Ceratizit Komet Number (Unpacked): W29 18030.048425
Ceratizit Komet Number (Packed): W2918030048425
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

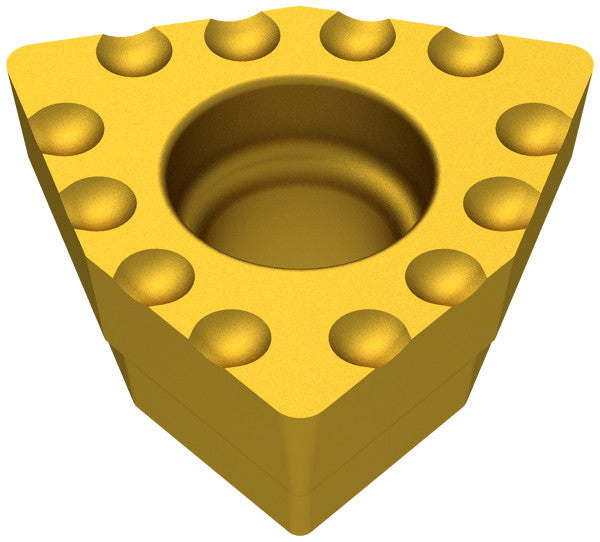

| Name | Ceratizit WOEX 040304SN-03 BK8425 CoreLine Carbide Drilling indexable Insert 1082130403 | |
| EDP # | 0753455 | |
| Weight (1 pc.) | 0.1 oz | 3.0 g |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| designation | 40304.0000" | 1023721.600 mm |
| insert thickness | 3.0000" | 76.200 mm |
| Fixing hole diameter / D1 | 0.1004" | 2.550 mm |
| Insert thickness / S | 0.1252" | 3.180 mm |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.1614" | 4.100 mm |
| Coating name / Grade (Ceratizit) / COATN | BK8425 | |
| Product-Carbon-Footprint | B | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
