Description
Ceratizit Article Number: 6284016097
Ceratizit Material Number: 12412325
Ceratizit Komet Number (Unpacked): M04 30000
Ceratizit Komet Number (Packed): M0430000
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

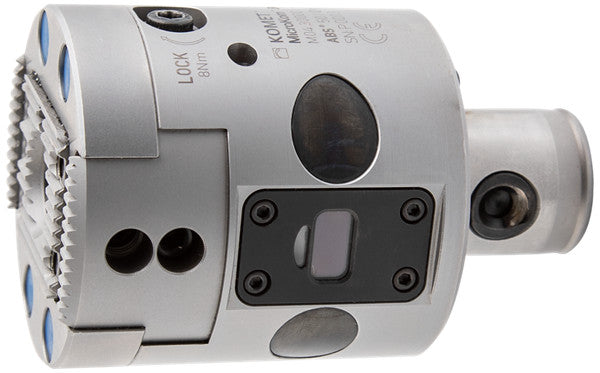

| Name | Ceratizit MK.BF2.FVK.BT.ABS50.0,5-365 SpinTools BluFlex Precision Adjustment Head 6284016097 | |
| EDP # | 0753489 | |
| Weight (1 pc.) | 75.0 oz | 2118 g |

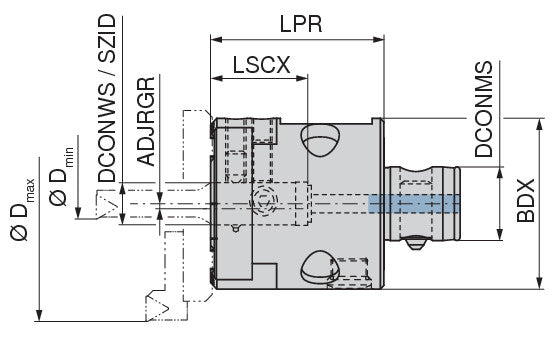

| Dmin - Dmax | 0.5 - 365 | |
| Machine interface size | ABS 50 | |
| Clamping diameter (DCONWS) / DCONWS | 0.6299" | 16.000 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| Body diameter maximum / BDX | 2.5591" | 65.000 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Protruding length / LPR | 2.7953" | 71.000 mm |
| Clamping length maximum machine side / LSCX | 1.4961" | 38.000 mm |
| Adjustment range radial - range / ADJRGR | -0.2 - 2.3 | |
| nominal size / SZID | ABS 32 | |
| Overall length / OAL | 4.0157" | 102.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
