Description
Ceratizit Article Number: 6286106300
Ceratizit Material Number: 12412331
Ceratizit Komet Number (Unpacked): M05 90100
Ceratizit Komet Number (Packed): M0590100
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit Body With Serration Ø25-63/0.984"-2.48 KOMET MicroKom Serrated Body For hi.flex 6286106300 | |
| EDP # | 0753491 | |
| Weight (1 pc.) | 6.0 oz | 175 g |
| Product-Carbon-Footprint | B | |

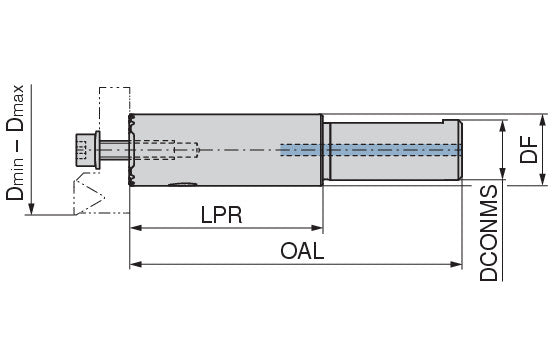

| Dmin - Dmax | 0.1969" - 2.4803" | 5.000 - 63.000 mm |
| Overall length / OAL | 3.5087" | 89.120 mm |
| Mounting spigot diameter / DCONMS g6 | 0.6299" | 16.000 mm |
| Protruding length / LPR | 2.0520" | 52.120 mm |
| Flange diameter / DF | 0.7480" | 19.000 mm |
| Cutting diameter minimum / DCN | 0.9843" | 25.000 mm |
| Abbildung | 1 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
