Description
Ceratizit Article Number: 6286304400
Ceratizit Material Number: 12412332
Ceratizit Komet Number (Unpacked): M05 20101
Ceratizit Komet Number (Packed): M0520101
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

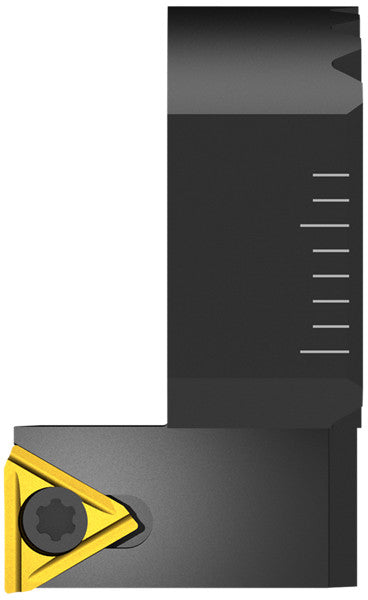

| Name | Ceratizit Insert Holder Ø 25 - 44; CoreLine hi.flex 6286304400 | |
| EDP # | 0753492 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Aluminum (Green) Hard/Tool Steel (Grey) Steel (Blue) Stainless Steel (Yellow) Cast Iron (Red) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 1.0 oz | 26.4 g |
| Product-Carbon-Footprint | B | |
| Insert | TO.. 06T1 | |
| for | 62 861 06300 | |
| Functional height / HF | 0.5315" | 13.500 mm |
| Cutting diameter maximum / DCX | 1.7323" | 44.000 mm |
| Cutting diameter minimum / DCN | 0.9843" | 25.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
