Description
Ceratizit Article Number: 6285001800
Ceratizit Material Number: 12412339
Ceratizit Komet Number (Unpacked): B05 20220
Ceratizit Komet Number (Packed): B0520220
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit Boring Bar Ø 18/R/N60; CoreLine - Steel - hi.flex 6285001800 | |
| EDP # | 0753499 | |
| Workpiece Material(s) | Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) Stainless Steel (Yellow) Steel (Blue) Cast Iron (Red) Hard/Tool Steel (Grey) Hard/Tool Steel (Grey) Aluminum (Green) All Materials (White) | |
| Weight (1 pc.) | 5.0 oz | 148 g |

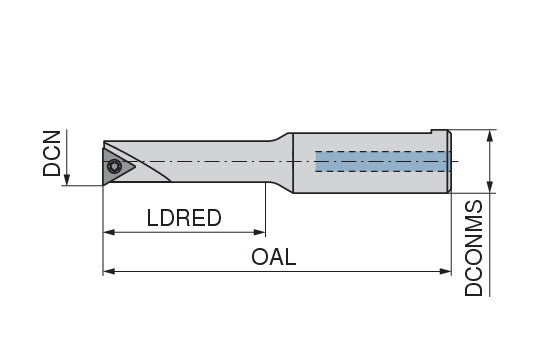

| Cutting diameter minimum / DCN | 0.7087" | 18.000 mm |
| Reduced body diameter length / LDRED | 2.3622" | 60.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.6299" | 16.000 mm |
| Insert | TO.. 0902 | |
| Overall length / OAL | 3.9370" | 100.000 mm |
| Dmin - Dmax | 18 - 25 | |
| Body diameter, reduced / BDRED | 0.6220" | 15.800 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
