Description
Ceratizit Article Number: 6260010102
Ceratizit Material Number: 12412342
Ceratizit Komet Number (Unpacked): W00 04120.012710
Ceratizit Komet Number (Packed): W0004120012710
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

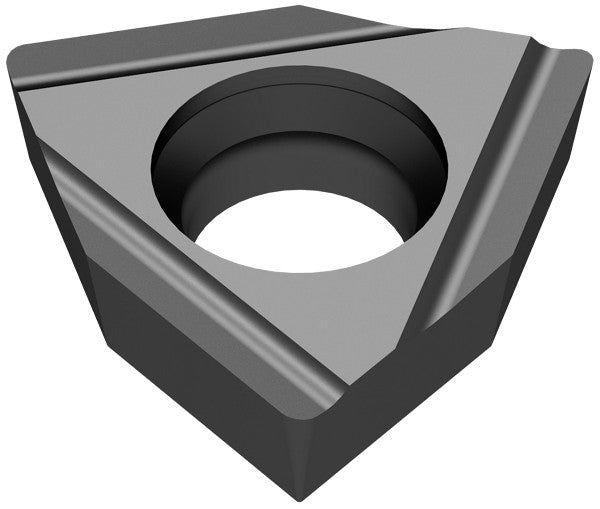

| Name | Ceratizit WOHX 02T001EL-G12 BK2710 CoreLine HM indexable Insert 6260010102 | |
| EDP # | 0753502 | |
| Weight (1 pc.) | 0.1 oz | 3.0 g |
| designation | 02T001EL | |
| Corner radius / RE | 0.0039" | 0.100 mm |
| Cutting edge length / L | 0.1024" | 2.600 mm |
| Insert thickness / S | 0.0472" | 1.200 mm |
| Fixing hole diameter / D1 | 0.0787" | 2.000 mm |
| Inscribed circle diameter / IC | 0.1575" | 4.000 mm |
| Chip breaker (Ceratizit) / CBMD | -G12 | |
| Coating name / Grade (Ceratizit) / COATN | BK2710 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
