Ceratizit Reamax TS Holder Cyl 52,00-70,00 5xD Holders 4050306599 (0753531)
Ceratizit Reamax TS Holder Cyl 52,00-70,00 5xD Holders 4050306599 (0753531)
Couldn't load pickup availability
Ceratizit Article Number: 4050306599
Ceratizit Material Number: 12413685
Ceratizit Komet Number (Unpacked): 75A.40.15070
Ceratizit Komet Number (Packed): 75A4015070
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit Reamax TS Holder Cyl 52,00-70,00 5xD Holders 4050306599 | |
| EDP # | 0753531 | |
| Workpiece Material(s) | Steel (Blue) Cast Iron (Red) Aluminum (Green) Aluminum (Green) Composites (Black) Steel (Blue) Stainless Steel (Yellow) All Materials (White) | |
| Weight (1 pc.) | 9.0 oz | 265 g |
| Product-Carbon-Footprint | B | |

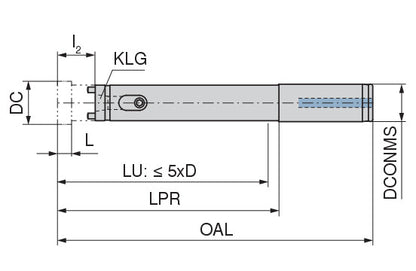

| Cutting edge Ø - range / DC | 52.00 - 65.00 | |
| Coupling Size | 7.0000" | 177.800 mm |
| Overall length / OAL | 11.0236" | 280.000 mm |
| L2 | 1.3780" | 35.000 mm |
| Protruding length / LPR | 8.6614" | 220.000 mm |
| Mounting spigot diameter / DCONMS h6 | 1.2598" | 32.000 mm |
| Cutting edge length / L | 0.3150" | 8.000 mm |
| Cutting edge Ø -range - Inch / DC | 2.0472 - 2.5590 | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
