Description
Ceratizit Article Number: 4066515900
Ceratizit Material Number: 12415504
Ceratizit Komet Number (Unpacked): 56Q.650160C0104
Ceratizit Komet Number (Packed): 56Q650160C0104
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit D015.9000M H7 ASG3000 KOMET Monomax - High-speed reamers, Long 4066515900 | |
| EDP # | 0753981 | |
| Weight (1 pc.) | 4e-05 oz | 0.0 g |

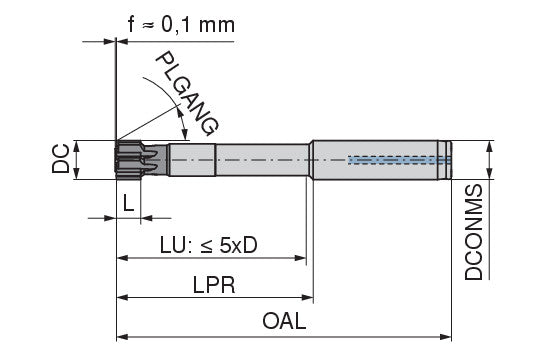

| Cutting diameter / DC H7 | 0.6260" | 15.900 mm |
| Overall length / OAL | 7.0866" | 180.000 mm |
| Usable length / LU | 4.9213" | 125.000 mm |
| Cutting edge length / L | 0.3740" | 9.500 mm |
| Mounting spigot diameter / DCONMS h6 | 0.6299" | 16.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| Protruding length / LPR | 5.1181" | 130.000 mm |
| Coating name / Grade (Ceratizit) / COATN | DBG-P | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
