Description
Ceratizit Article Number: 7100322800
Ceratizit Material Number: 12419853
Ceratizit Komet Number (Unpacked): 12419 853
Ceratizit Komet Number (Packed): 12419853
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.

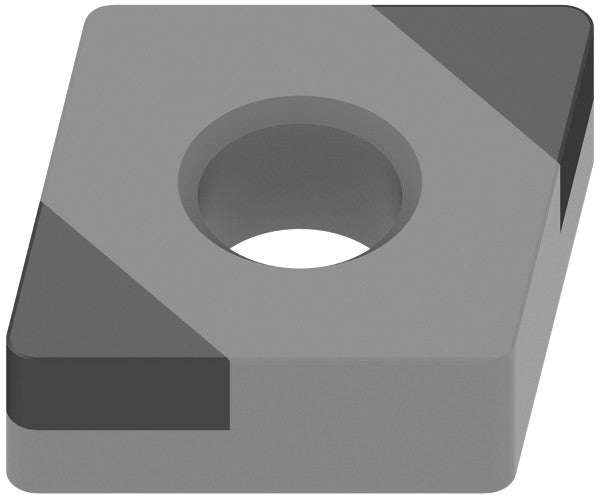

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit CNGA 120404RN_B3 CTBH15C CoreLine - - 7100322800 | |
| EDP # | 0754072 | |
| Weight (1 pc.) | 1.0 oz | 14.2 g |
| designation | 120404RN | |

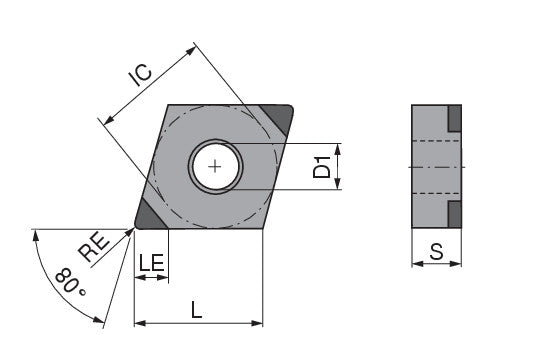

| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.5079" | 12.900 mm |
| Insert thickness / S | 0.1874" | 4.760 mm |
| Fixing hole diameter / D1 | 0.2020" | 5.130 mm |
| Inscribed circle diameter / IC | 0.5000" | 12.700 mm |
| 431RN | ||
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1181" | 3.000 mm |
| Size | 12.0000" | 304.800 mm |
| Designation | CNGA 120404 | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH15C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
