Description
Ceratizit Article Number: 7100830214
Ceratizit Material Number: 12419872
Ceratizit Komet Number (Unpacked): 12419 872
Ceratizit Komet Number (Packed): 12419872
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.

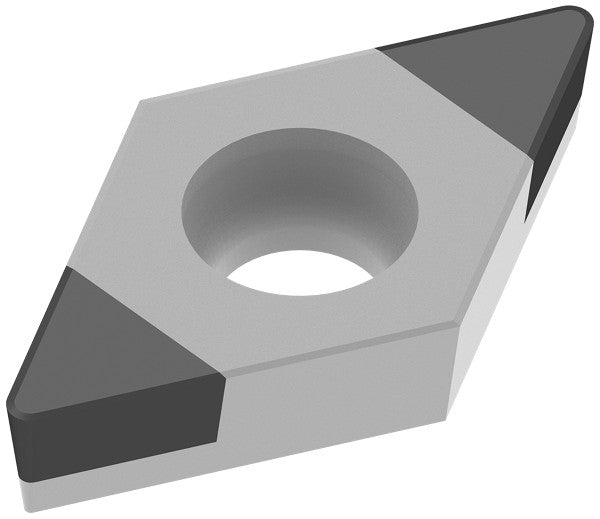

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit DCGW 070202SN-011C_B4 CTBH15U CoreLine 7100830214 | |
| EDP # | 0754079 | |
| Weight (1 pc.) | 0.1 oz | 2.1 g |
| designation | 070202SN | |
| Corner radius / RE | 0.0079" | 0.200 mm |
| Cutting edge length / L | 0.3051" | 7.750 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 21.5.5SN | ||
| support chamfer angle / GB | 15 ° | |
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1535" | 3.900 mm |
| Face land width / BN | 0.0043" | 0.110 mm |
| Size | 7.0000" | 177.800 mm |
| Designation | DCGW 070202 | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH15U | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
