Description
Ceratizit Article Number: 7100700400
Ceratizit Material Number: 12419873
Ceratizit Komet Number (Unpacked): 12419 873
Ceratizit Komet Number (Packed): 12419873
Ceratizit is a large tooling company based in Luxembourg (Europe).
Product discontinued! Unavailable if out of stock.
This product was priced singly and came in packs of 1.

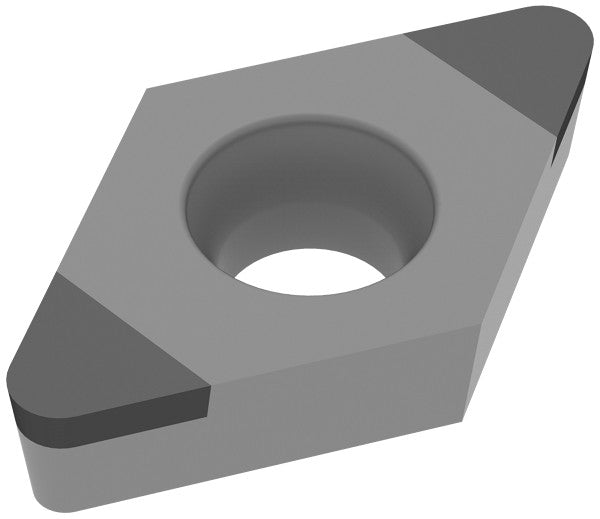

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

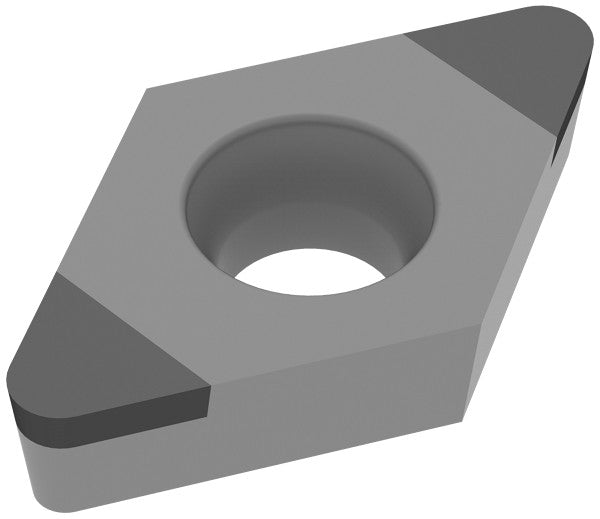

| Name | Ceratizit DCGW 070204EN_B4 CTBH15C CoreLine - - 7100700400 | |
| EDP # | 0754080 | |
| Weight (1 pc.) | 0.2 oz | 5.0 g |
| designation | 070204EN | |
| Corner radius / RE | 0.0157" | 0.400 mm |
| Cutting edge length / L | 0.3051" | 7.750 mm |
| Insert thickness / S | 0.0937" | 2.380 mm |
| Fixing hole diameter / D1 | 0.1102" | 2.800 mm |
| Inscribed circle diameter / IC | 0.2500" | 6.350 mm |
| 21.51EN | ||
| TCE (NOI) | B (2) | |
| Cutting edge effective length / LE | 0.1378" | 3.500 mm |
| Size | 7.0000" | 177.800 mm |
| Designation | DCGW 070204 | |
| Insert index count / NOI | 2.0000" | 50.800 mm |
| Chip breaker (Ceratizit) / CBMD | None | |
| Coating name / Grade (Ceratizit) / COATN | CTBH15C | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
