Description
Ceratizit Article Number: 4047509990
Ceratizit Material Number: 12443983
Ceratizit Komet Number (Unpacked): 52G.550100C0008
Ceratizit Komet Number (Packed): 52G550100C0008
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|
| Name | Ceratizit D009.9900MHT+0.0050/+0.0000 ASG2360 KOMET Fullmax - High-performance Machine reamers, Long 4047509990 | |
| EDP # | 0754693 | |
| Weight (1 pc.) | 3.0 oz | 91.0 g |

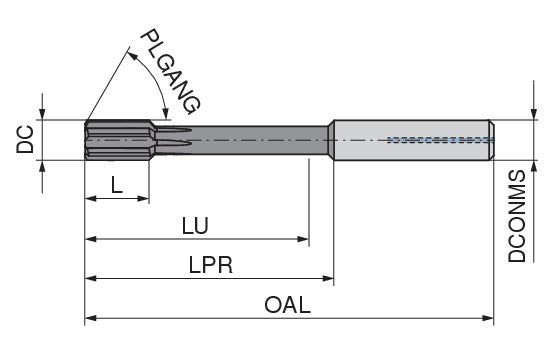

| Cutting diameter / DC +0,004/+0,005 | 0.3933" | 9.990 mm |
| Overall length / OAL | 4.2520" | 108.000 mm |
| Cutting edge length / L | 0.6299" | 16.000 mm |
| Usable length / LU | 2.4803" | 63.000 mm |
| Mounting spigot diameter / DCONMS h6 | 0.3937" | 10.000 mm |
| Peripheral effective cutting edge count / ZEFP | 6 | |
| Protruding length / LPR | 2.6772" | 68.000 mm |
| Coating name / Grade (Ceratizit) / COATN | DBF-A | |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
