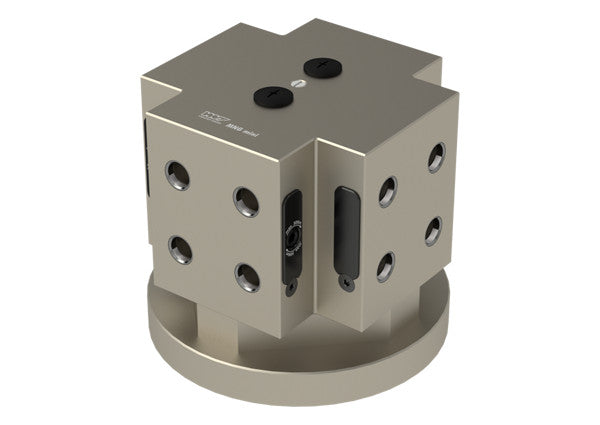

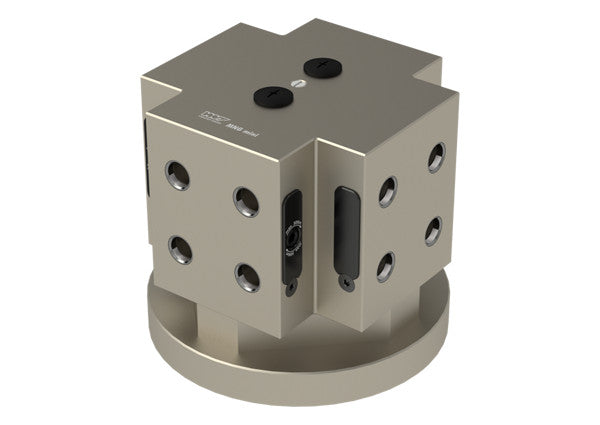

Ceratizit AST.4.4.197.171.MNGMINI CoreLine - 4-sided Clamping Tower - 8091554000 (0755419) [SKU:8091554000]

Ceratizit AST.4.4.197.171.MNGMINI CoreLine - 4-sided Clamping Tower - 8091554000 (0755419) [SKU:8091554000]

Sign in to see pricing.
Shipping calculated at checkout.

Ceratizit Article Number: 8091554000

Ceratizit Material Number: 8091554000

Ceratizit is a large tooling company based in Luxembourg (Europe).

This product is priced singly and comes in packs of 1.

Please note that the actual item may not be/look exactly the same as shown in the item picture(s).

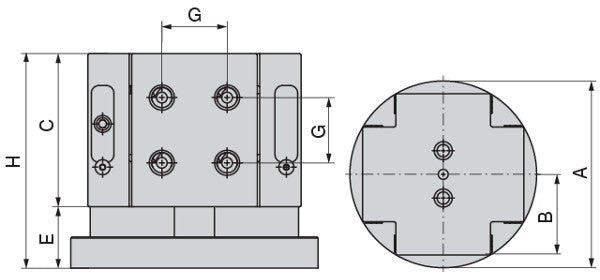

Properties
Name Ceratizit AST.4.4.197.171.MNGMINI CoreLine - 4-sided Clamping Tower - 8091554000
EDP # 0755419
Product System MNG mini
A 7.7559" 197.000 mm
Shank width (B) 3.3465" 85.000 mm
C 4.8031" 122.000 mm
D 6 1.9685" 50.000 mm
E 1.9291" 49.000 mm
F ±0.015 2.5984" 66.000 mm
G H7 0.4724" 12.000 mm
Shank height (H) 6.7323" 171.000 mm
I 0.5118" 13.000 mm
I1 0.7480" 19.000 mm
J ±0.015 2.0472" 52.000 mm
K ±0.015 3.9370" 100.000 mm
J2 ±0.015 2.0472" 52.000 mm
J1 H7 0.9843" 25.000 mm
D - Toleranz 6.0000" 152.400 mm
J2 - Toleranz ±0.015
J1 - Toleranz H7


Company History:

The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
