Description
Ceratizit Article Number: 1085809090
Ceratizit Material Number: 12525707
Ceratizit Komet Number (Unpacked): V46 40851
Ceratizit Komet Number (Packed): V4640851
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

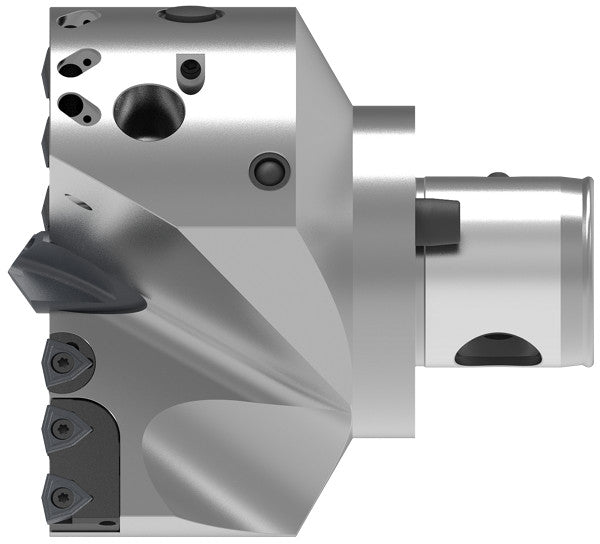

| Name | Ceratizit DRILL HEAD ABS-T50 85-90 mm DIA. Pentron Indexable Insert Bit Centron V464 1085809090 | |
| EDP # | 0755658 | |
| Workpiece Material(s) | Steel (Blue) Stainless Steel (Yellow) Hard/Tool Steel (Grey) Cast Iron (Red) Cast Iron (Red) Composites (Black) Aluminum (Green) HiTemp Alloy (Orange) Composites (Black) All Materials (White) | |
| Weight (1 pc.) | 71.0 oz | 2020 g |
| Product-Carbon-Footprint | B | |
| Productsystem | Centron V464 | |
| Machining process - Main Application | Solid drilling | |

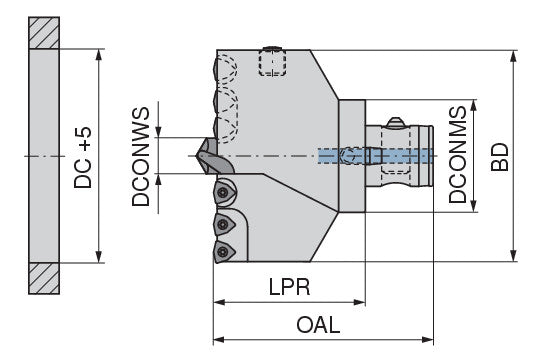

| Cutting diameter / DC | 3.3465" | 85.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 0.6299" | 16.000 mm |
| Step distance / SD | 0.2276" | 5.780 mm |
| Step diameter length / SDL | 0.0709" | 1.800 mm |
| Protruding length / LPR | 2.9528" | 75.000 mm |
| Overall length / OAL | 4.1732" | 106.000 mm |
| Neck diameter (BD) / BD | 3.2874" | 83.500 mm |
| Flange diameter / DF | 1.9685" | 50.000 mm |
| Mounting spigot diameter / DCONMS | 1.1024" | 28.000 mm |
| torque moment | 2.8 Nm | |
| Insert | WOEX 06T3.. | |
| Cutting edge count / CEDC | 4.0000" | 101.600 mm |
| Shank length / LS | 1.2205" | 31.000 mm |
| Machine interface size | ABS 50 T | |
Tool Form:
'D' form indicates that the tool is intended for drilling/plunging, and will not cut laterally.
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
