Description
Ceratizit Article Number: 8422504896
Ceratizit Material Number: 12540300
Ceratizit Komet Number (Unpacked): A34 35080
Ceratizit Komet Number (Packed): A3435080
Ceratizit is a large tooling company based in Luxembourg (Europe).
This product is priced singly and comes in packs of 1.
Please note that the actual item may not be/look exactly the same as shown in the item picture(s).
| Properties | ||
|---|---|---|

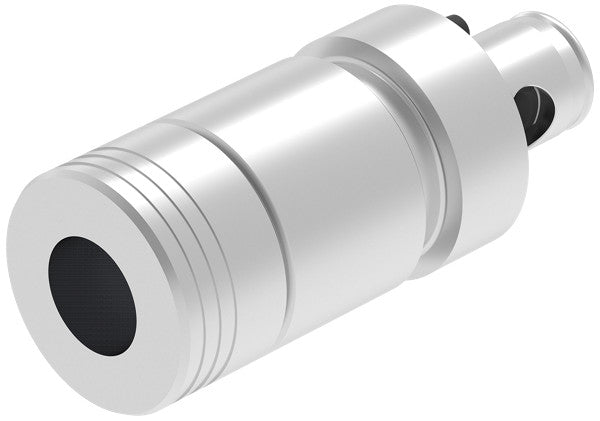

| Name | Ceratizit TAPPING CHUCK ABS 63-GWF48-IK Quick Change Tapping Chuck With Length Compensation 8422504896 | |
| EDP # | 0755880 | |
| Weight (1 pc.) | 172.0 oz | 4864 g |
| Machine interface size | ABS 63 | |
| cutting range | M14 - M33 | |

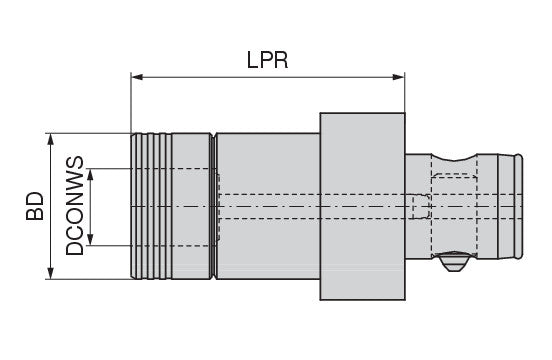

| Protruding length / LPR | 6.2992" | 160.000 mm |
| Neck diameter (BD) / BD | 3.3858" | 86.000 mm |
| Clamping diameter (DCONWS) / DCONWS | 1.8898" | 48.000 mm |
| Body length / LB | 5.8268" | 148.000 mm |
| LZD± | 0.6890" | 17.500 mm |
| Mounting spigot diameter / DCONMS | 1.3386" | 34.000 mm |
| Overall length / OAL | 7.7953" | 198.000 mm |
| Clamping length machine side / LSC | 1.4961" | 38.000 mm |
Company History:
The company is a result of the merging of Metallwerk Plansee GmbH (Austria, 1921, later 'Plansee Tizit') and CERAMETAL (Luxembourg, 1931). The name Ceratizit was created by combining their names in 2002. Both founding companies originally produced molybdenum wire and tungsten lightbulb filaments, and were pioneers in commercial cemented tungsten carbide (since as early as 1929!) and their metal working / cutting tool product lines currently add up to over 80,000 items!
